Feature
Product Description

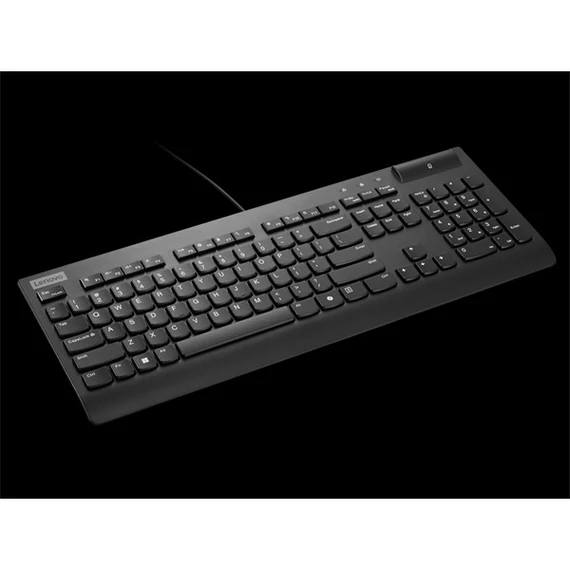

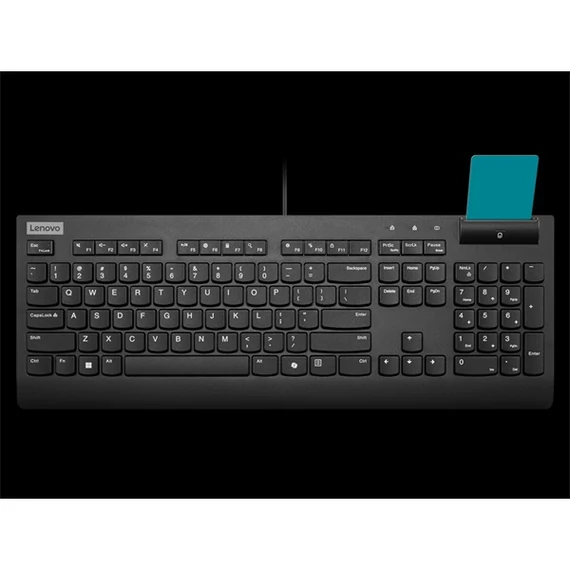

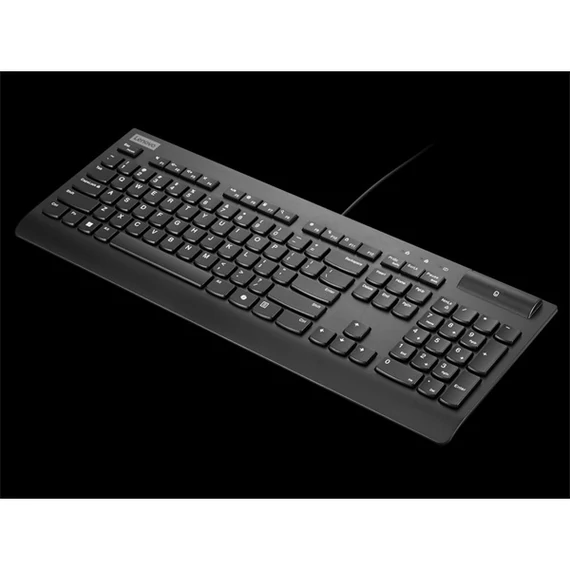

In workplaces where information is sensitive, authentication and secure data access are the keys to prevent disasters. Our latest Lenovo Smartcard Wired Keyboard II is a purpose-built solution that gives you the best of both worlds. The power of a full-size keyboard with the added security of an integrated Smartcard reader for applications that require enhanced protection.The specialized Microsoft Copilot Key enables your improved experience of working efficiency.
Top Features
- Full size 3-zone keyboard
- Reliable wired USB connection
- Function hot keys and LED indicators
- Industry standard integrated smartcard reader
- Easy access 30-degree vertical smartcard insertion
- Support with EMV but no certification, because the EMV certification is no longer required for the smart card reader
- Supports ISO 7816-1, 2, 3, 4 memory and microprocessor smart cards (T=0, T=1)
- Supports Secure PIN Entry mode (Class 2 terminal)
- Supports 3 V and 5 V smart cards (Class A and Class AB cards)
- Supports T=0, T=1, S=8, S=9, S=10 protocols
- Smartcard 16/32/64KB support
- Support for standard application program interfaces (API)
- Copilot is not available or enabled on the device, pressing the Copilot key will launch Windows Search.
Tech Specs
| JAN |
4582764200972 |
| EAN |
0195892117339 |
| UPC |
195892117339 |
| Warranty Type |
Customer Replaceable Unit (CRU) |
| Warranty Period |
3 Years |
| Maximum Relative Humidity (%) |
95% relative humidity |
| Minimum Relative Humidity (%) |
20% relative humidity |
| Maximum Operating Temperature |
40 degrees Celsius (104 degrees Fahrenheit) |
| Minimum Operating Temperature |
-5 degrees Celsius (23 degrees Fahrenheit) |
| Packed Weight |
1.080 kg (2.38 lbs) |
| Packed Dimensions (L x D x H) |
476 x 206 x 36, mm (18.74 x 8.11 x 1.42, in) |
| Package Type |
Brown box |
| Hardware Requirements |
Supported PC with USB A connection |
| Connectivity |
Wired via USB |
| Specialized Software/Driver |
Yes (download at https://support.lenovo.com/) |
| Agency Approvals |
CB, cTUVus, TUV Mark, CE EMC, BIS, FCC, VCCI, BSMI, KCC |
| Shipment Group |
Lenovo Smartcard Keyboard II, Documents and publications |
| Product Weight |
0.816 kg (1.8 lbs) |
| Height |
24 mm (0.94 in) |
| Depth |
162 mm (6.34 in) |
| Length |
445 mm (17.52 in) |
| Y-direction Key Pitch |
19.05 mm |
| X-direction Key Pitch |
19.05 mm |
| Switch Type |
Plunger type switch |
| Key Style |
Low profile island style keys |
| Keyboard Key Lifecycle |
Up to 10 million clicks |
| Tilt Adjustable |
4.35 degrees without tilt feet
8 degrees with tilt feet |
| Color |
Black |
| Special/Added Features |
Integrated smartcard reader
30-degrees vertical smartcard insertion
Fn LED , Caps Lock LED, Scroll Lock LED, Num Lock LED |
| Number of Keys |
106 |
| Language Layout |
Hungarian |
| Keyboard Layout |
3-zone layout |
| Cable Length/Type |
2.0 m |
| Supported OS |
Windows 10, Windows 11 |
| Brand |
Lenovo |
