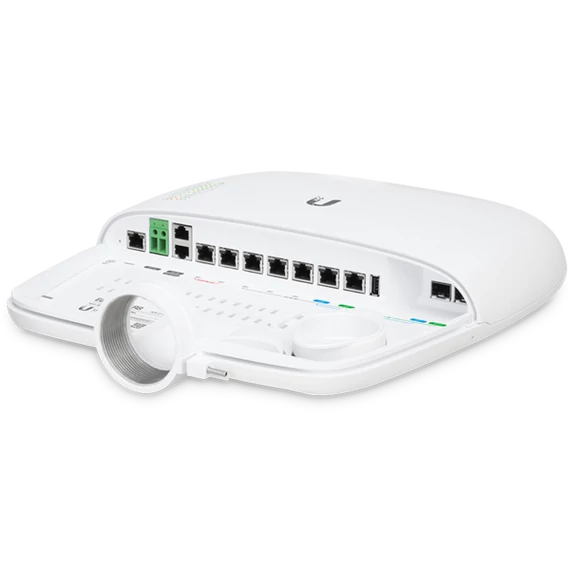

UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8

Ugrás a termék információkhoz
UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8 UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8 UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8 UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8
UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8
UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8
UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8
UBiQUiTi EdgePoint Router 6x1000Mbps (POE) + 2x1000Mbps SFP Combo, kültéri, vízálló - EP-R8

Paraméterek

Gyártó UBIQUITI
Szabvány 802.11b
164.690 Ft (129.677 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

EP-R8
Dimensions
With Wall-Mount		 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight
With Wall-Mount		 3.4 kg (7.50 lb)
3.8 kg (8.38 lb)
Enclosure Characteristics Diecast Aluminum Alloy and Polycarbonate with UV Resistance
Max. Power Consumption 40W (Excludes PoE Output)
Power Input (1) DC Terminal Block
or
(2) RJ45 (PoE In and eth0)
(Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54VDC, 6A
Passive PoE Input (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In
(PoE In is DC Only, No Data)
Passive PoE Output (2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2
(5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7
Power Monitoring (1) DC Terminal Block, Input Power
(2) RJ45, PoE In and eth0, Input Power
Supported Voltage Range 56 to 42VDC
Button Reset
LEDs
System
eth0
eth1 to eth7
SFP
Power
Speed/Link/Activity
Speed/Link/Activity, PoE
Speed/Link/Activity
Ports
Serial Console Port
PoE In Port
Data Ports		 (1) RJ45 Serial Port
(1) RJ45 Port
(6) 10/100/1000 RJ45 Ports
(2) 10/100/1000 RJ45/SFP Combination Ports
Processor Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory 2 GB DDR3-1600 RAM
Code Storage 4 GB
Certifications CE, FCC, IC
Pole/Wall Mount Yes
Wind Loading 153 N @ 200 km/h (34 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Operating Temperature -40 to 65° C (-40 to 149° F)
Operating Humidity 10 to 90% Noncondensing
