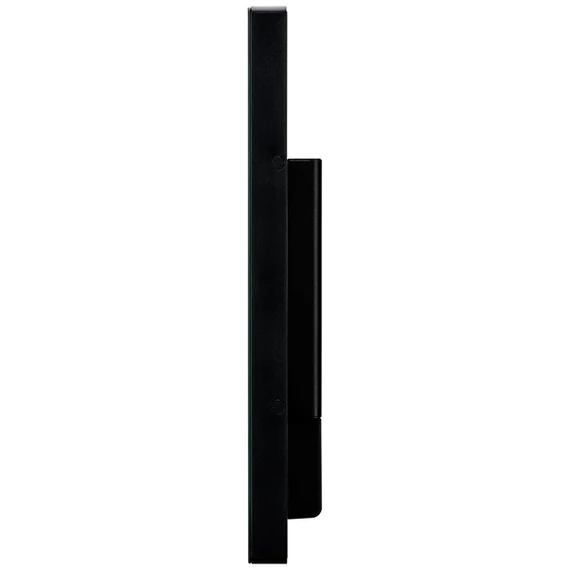

iiyama touch monitor, 17", 1280x1024, 5:4, 315cd, 5ms, 1000:1,/HDMI/DP, Open frame, TF1734MC

Ugrás a termék információkhoz
iiyama touch monitor, 17 iiyama touch monitor, 17 iiyama touch monitor, 17 iiyama touch monitor, 17 iiyama touch monitor, 17
iiyama touch monitor, 17
iiyama touch monitor, 17
iiyama touch monitor, 17
iiyama touch monitor, 17
iiyama touch monitor, 17

Paraméterek

Display Port Van
Fali rögzítés 100x100mm VESA falitartó-támogatás
Felbontás 1280 x 1024 (SXGA) 5:4
Fényerő 310
Gyártó IIYAMA
HDMI Van
Képarány 5:4
Képátló 17
Panel típus TN
Típus Touch monitor
USB Van
Válaszidő 5
215.190 Ft (169.441 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

DISPLAY CHARACTERISTICS

Design Open Frame
Diagonal 17", 43cm
Panel TN LED
Native resolution 1280 x 1024 (1.3 megapixel)
Aspect ratio 5:4
Panel brightness 350 cd/m²
Brightness 315 cd/m² with touch
Light transmittance 90%
Static contrast 1000:1 with touch
Response time (BTB) 5ms
Viewing zone horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support 16.7mln 8bit
Horizontal Sync 31.4 - 80kHz
Viewable area W x H 338 x 270.5mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
HDCP yes

FEATURES

Extra anti-fingerprint coating, touch through-glass
Glass thickness 7mm
Water and dust protection IP65 (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

MECHANICAL

Orientation landscape, portrait, face-up
VESA mounting 100 x 100mm

ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 13W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 369 x 307 x 47.5mm
Box dimensions W x H x D 455 x 387 x 145mm
Weight (without box) 3.6kg
Weight (with box) 4.9kg
EAN code 4948570118397

COMPATIBLE ACCESSORIES

Mounts/stands/brackets OMK1-1

RELATED INFORMATION

Product series ProLite TF1634MC-B7X, ProLite TF1534MC-B7X, ProLite TF2234MC-B7X, ProLite TF1934MC-B7X
Related products RC TOUCHV01, OMK1-1
