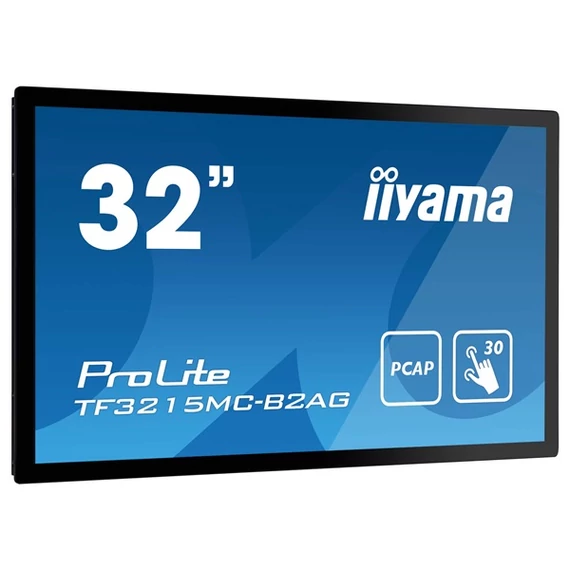

iiyama 24/7 interaktív kijelző, 31,5" , 1920x1080, 16:9, 425cd, 8ms, 3000:1,VGA/HDMI/DP, TF3215MC
Paraméterek
| Tulajdonság | Érték |
|---|---|
| D-Sub | Van |
| Display Port | Van |
| Érintőképernyő (Igen/Nem) | Van |
| Fali rögzítés | 200x200mm VESA falitartó-támogatás |
| Felbontás | 1920 x 1080 (FHD1080) 16:9 |
| Fényerő | 500 |
| Gyártó | IIYAMA |
| HDMI | Van |
| Képátló | 21.5 |
| Kontrasztarány | 3000 |
| Panel típus | VA |
| Üzemidő | 24/7 |
-
Elérhetőség:
Rendelhető
- Gyártó: Iiyama
- Gyártó cikkszám: TF3215MC-B2AG
- ChipVilág Cikkszám: 379445
- Ugrás az összehasonlító modulhoz
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van
Leírás
DISPLAY CHARACTERISTICS
| Design | Open Frame |
| Diagonal | 31.5", 80cm |
| Panel | VA, Anti-Glare coating |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 500 cd/m² |
| Brightness | 425 cd/m² with touch |
| Light transmittance | 85% |
| Static contrast | 3000:1 with touch |
| Response time (GTG) | 8ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln 8bit |
| Horizontal Sync | 30 - 68kHz |
| Viewable area W x H | 698.4 x 392.8mm, 27.5 x 15.5" |
| Pixel pitch | 0.3637mm |
| Bezel colour and finish | black |
| Reommended usage | retail |
TOUCH
| Touch technology | projective capacitive |
| Touch points | 30 (HID, only with supported OS) |
| Touch accuracy | +- 2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
INTERFACES / CONNECTORS / CONTROLS
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| HDCP | yes |
FEATURES
| Extra | Touch Through-Glass, Anti-glare coating |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass hardness | 6H |
| 60950 Ball drop test | yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Water tight seal | yes |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass) |
| Plug&Play | DDC2B |
MECHANICAL
| Orientation | landscape, portrait |
| Fanless design | yes |
| VESA mounting | 200 x 200mm |
| Cable management system | cable cover |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50000 hours |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI |
| Guides | quick start guide, safety guide |
| Cable cover | yes |
POWER MANAGEMENT
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 32W typical, 1.5W stand by, 0.3W off mode |
SUSTAINABILITY
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 745.5 x 437 x 61mm |
| Box dimensions W x H x D | 890 x 630 x 155mm |
| Pallet volume | 21pcs |
| Pallet dimensions W x H x D | 1000 x 2040 x 1200mm |
| Weight (without box) | 10kg |
| Weight (with box) | 12.85kg |
| EAN code | 4948570123674 |
RELATED INFORMATION
| Product series | ProLite TF1015MC-B2, ProLite TF1515MC-B2, ProLite TF2215MC-B2, ProLite TF2415MC-B2, ProLite TF3215MC-B2 |
