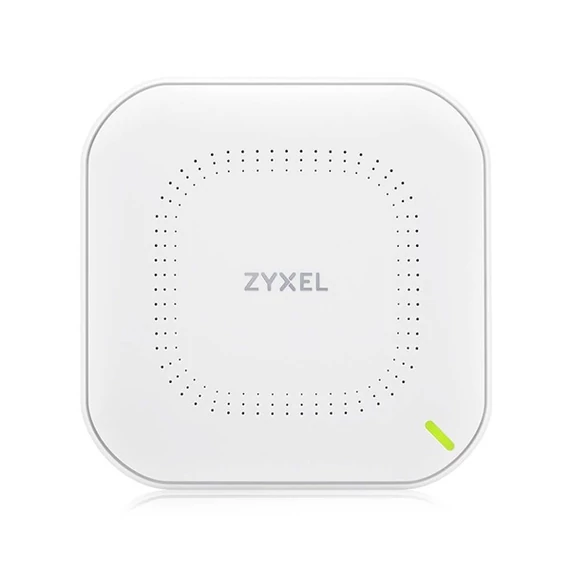

ZYXEL Wireless Access Point Dual Band AX3000 (WiFi 6) Falra rögzíthető 1x2.5G, NWA50AXPRO-EU0102F

Ugrás a termék információkhoz
ZYXEL Wireless Access Point Dual Band AX3000 (WiFi 6) Falra rögzíthető 1x2.5G, NWA50AXPRO-EU0102F

Paraméterek

Bridge funkció Van
Frekvencia 2.4 Ghz és 5 Ghz
Gyártó ZYXEL
Kültéri kivitel Nincs
Repeater funkció Van
46.090 Ft (36.291 Ft + ÁFA)
Menny.: db
Kosárba teszem!
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

Description 802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard IEEE 802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
Frequency band 2.4 GHz
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
  • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40-, 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26 dBm
EU (2.4GHz/5GHz): 20/25 dBm
RF Design
Antenna type 2x2 + 2x2 MIMO embedded antenna
Antenna gain 2.4GHz: 3 dBi
5GHz: 4 dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -99 dBm
WLAN feature
Band Steering Yes
WDS/Mesh Yes
Fast roaming Yes
DCS Yes
Load balancing No
Security
Encryption
  • WPA Personal
  • WPA2 Personal
  • WPA3 Personal
Authentication No
Access management
  • MAC filtering
  • Rogue AP detection
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
Management
Operating mode
  • Nebula Cloud managed
  • Standalone
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
Zyxel Wireless Optimizer WiFi AP planning
Web UI/CLI Yes
SNMP NO
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
140 x 140 x 37.5/5.51 x 5.51 x 1.48
Weight (g/lb.)
290/0.64
Packing Dimensions (WxDxH)(mm/in.)
240 x 155 x 60/9.45 x 6.10 x 2.36
Weight (g/lb.)
600/1.32
Included accessories
  • Power adapter
  • Mount plate
  • Mounting screws
MTBF (hr) 1,010,980
Physical Interfaces
Ethernet port 1 x 10/100/1000M LAN
Power
  • Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
  • PoE (802.3at): power draw 16 W
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
  • FCC Part 15C
  • FCC Part 15E
  • ETSI EN 300 328
  • EN 301 893; LP0002
  • EN 60601-1-2
EMC
  • FCC Part 15B
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • EN61000-3-2/-3
  • BSMI CNS13438
Safety
  • EN 60950-1
  • IEC 60950-1
  • BSMI
  • CNS14336-1
