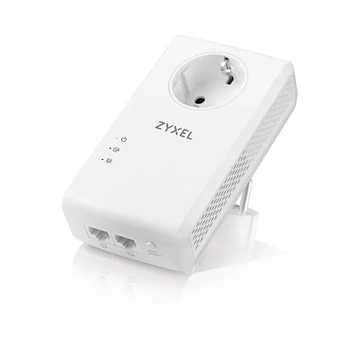

ZYXEL Powerline AV2000 2x2000Mbps, PLA5456-EU0201F

Standard

• Compliant with HomePlug AV2
• IEEE 1901 and HomePlug AV standard

Powerline Data Rate

• Transmit: up to 1800 Mbps*
• Receive: up to 1800 Mbps*

Access Methods

• CSMA/CA channel-access schemes

HomePlug Modulation

• OFDM symbol modulation
• QAM 4096/1024/256/64/16
• QPSK, BPSK, ROBO carrier modulation schemes

Range

• Max. range up to 300 meters over power line

Security

• 128-bit AES encryption

Quality of Service (QoS)

• Supports up to 4-level type QoS

Frequency Band

• 2 MHz to 86 MHz

IGMP

• IGMP v1/v2/v3

System Requirements

• Operating system independent:
  • Ethernet: RJ-45
• Utility software OS support:
  • Microsoft Windows XP/Vista/7/8

Hardware Specifications

• Ethernet interface: Two 10/100/1000 Mbps RJ-45 connectors with auto MDI/MDIX support
• LED indicators:
  • Powerline network quality:
    • Green: Best
    • Amber: Better
    • Red: Good
  • Ethernet link/activity
• Button:
  • Encrypt/Reset button
• Power rating: 100 to 240 V AC, 50/60 Hz
• Power consumption:
  • Full operation: 6 watt max.
• Socket/Connector:
  • EU:
    • Type F (CEE 7/4)/Type F (CEE 7/4)
    • Max power rating: 16 A 250 V ~
    • DE, NL, ES, PT, AT, SE, FI, NO, GR, HU, LU
