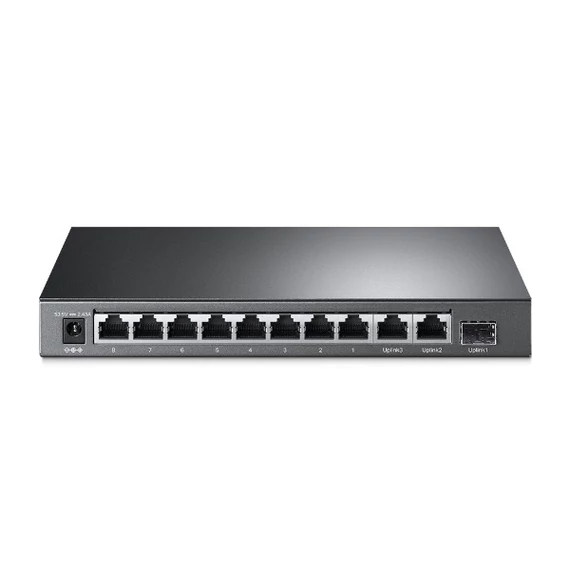

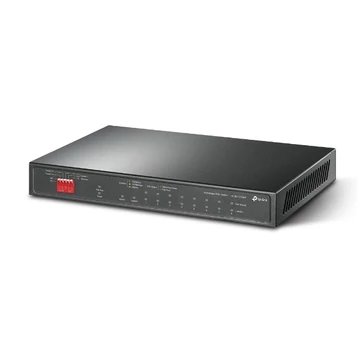

TP-LINK Switch 9x1000Mbps (8xPOE+) + 1xGigabit kombó SFP, TL-SG1210MP

Ugrás a termék információkhoz
TP-LINK Switch 9x1000Mbps (8xPOE+) + 1xGigabit kombó SFP, TL-SG1210MP TP-LINK Switch 9x1000Mbps (8xPOE+) + 1xGigabit kombó SFP, TL-SG1210MP
TP-LINK Switch 9x1000Mbps (8xPOE+) + 1xGigabit kombó SFP, TL-SG1210MP
TP-LINK Switch 9x1000Mbps (8xPOE+) + 1xGigabit kombó SFP, TL-SG1210MP

Paraméterek

Áteresztő képesség 14.9
Gyártó TP-LINK
Menedzselhető Nincs
PoE (Power over Ethernet) Van
Port típusa 1Gb Réz
Portok száma 10
Rack-be szerelhető Van
SFP port 1
Switch típus Fixed port
Switching kapacitás 20
40.790 Ft (32.118 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

Interface • 9× 10/100/1000 Mbps RJ45 Ports
• 1× 1000 Mbps Combo SFP/RJ45 Port
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate 14.88 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 123 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption • 7.93 W (220V / 50Hz with no PD connected)
• 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation • 27.04 BTU/h (220V / 50Hz with no PD connected)
• 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SG1210MP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
