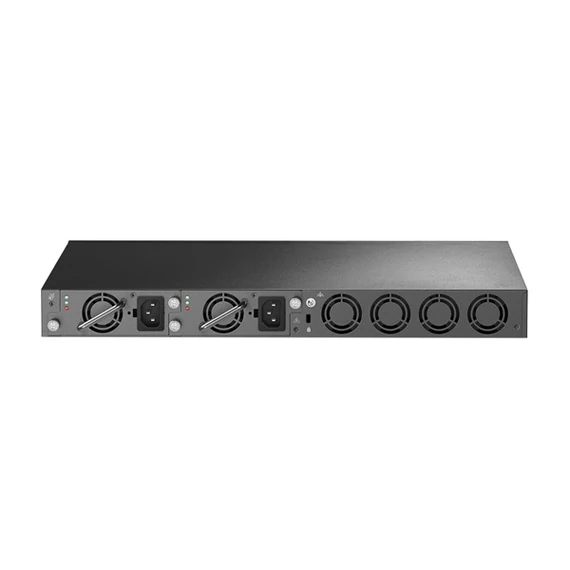

TP-LINK GPON Terminal 8xXGS-PON (SFP+) + 2x10G SFP+ +2x40G QSFP+ + 1xLAN + 1xkonzol port, DS-P7500-08

Ugrás a termék információkhoz
TP-LINK GPON Terminal 8xXGS-PON (SFP+) + 2x10G SFP+ +2x40G QSFP+ + 1xLAN + 1xkonzol port, DS-P7500-08 TP-LINK GPON Terminal 8xXGS-PON (SFP+) + 2x10G SFP+ +2x40G QSFP+ + 1xLAN + 1xkonzol port, DS-P7500-08
TP-LINK GPON Terminal 8xXGS-PON (SFP+) + 2x10G SFP+ +2x40G QSFP+ + 1xLAN + 1xkonzol port, DS-P7500-08
TP-LINK GPON Terminal 8xXGS-PON (SFP+) + 2x10G SFP+ +2x40G QSFP+ + 1xLAN + 1xkonzol port, DS-P7500-08

Paraméterek

Gyártó TP-LINK
Menedzselhető Van
Menedzselhetőség Teljes
PoE (Power over Ethernet) Nincs
Portok száma 12
Rack-be szerelhető Van
SFP port 12
Switch típus Modular
2.607.290 Ft (2.052.984 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

HARDWARE FEATURES
Interface 8× XGS-PON & GPON Combo Ports (SFP+)
2× 40G QSFP+ Ports
2× 10G SFP+ Ports
1× RJ45 Management Port
1× RJ45 Console Port
1× Alarm Port
Button Reset Button
Power Supply Dual Power Supplies: 2 AC, 2 DC or AC+DC,
AC: 100V~240V, 50/60Hz
DC: -38.4V~-72V
Power Consumption Max. 109.2W
Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
SOFTWARE FEATURES
Security ACL
802.1x Authentication
ARP Inspection
IP Source Guard
DHCP DHCP Server
DHCP Relay
OMCI Standard OMCI Management Supported
ONU Authentication ONU Auto Authentication
ONU Security Rouge ONU Detection and Isolation
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS IEEE 802.1p/DSCP QoS
Voice VLAN
Auto VoIP
Routing Static Routing
Mulitcast IGMP Snooping
MLD Snooping
Centralized Management Large-Scale Devices Management
OLT Batch Configure, Upgrade, Reboot
Multi-Site Management
Intelligent Network Monitoring
Real-time Network Overview
Combo PON Port Attribute
Max. Splitting Ratio 1:128 for GPON, 1:256 for XGS-PON
Transmission distance 20 km
Data rate GPON
Downstream: 2.5 Gbps, Upstream: 1.25 Gbps

XGS-PON
Downstream: 9.953 Gbps, Upstream: 9.953 Gbps
Wavelength XGS-PON:
Tx: 1577 nm
Rx: 1270 nm

GPON:
Tx: 1490 nm
Rx: 1310 nm
OTHERS
Certification CE,FCC
Package Contents Optical Line Terminal DS-P7500-8
AC Power Cord
Console Cable
Mouting Brackets, Screws and Rubber Feet
Installation Guide
Environment Operating Temperature: 0?–50? (32?–122?)
Storage Temperature: -40?–70? (-40?–158?)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
