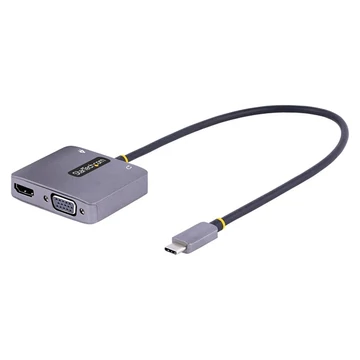

STARTECH USB-C Video Adapter, 1xVGA, 1xHDMI 4K 60Hz, 1xUSB-C 100W PD, 1x3.5mm Jack, 30cm kábel

Connector(s)

Connector A

1 - USB-C (24 pin) DisplayPort Alt Mode

1 - USB Type-C (24 pin) USB Power Delivery Only

Connector B

1 - HDMI (19 pin)

1 - 15 pin High Density D-Sub (VGA) Female

1 - 3.5mm Stereo Female 3 pos

Environmental

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-10°C to 70°C (14°F to 158°F)

Humidity

10% - 85% RH

Hardware

Active or Passive Adapter

Active

AV Input

USB-C

AV Output

VGA

HDMI

Chipset ID

VIA/VLI - VL103-Q4
ITE - IT6564FN

Packaging Information

Package Height

1.2 in [3.0 cm]

Package Length

5.7 in [14.5 cm]

Shipping (Package) Weight

3.3 oz [94.0 g]

Package Width

6.9 in [17.5 cm]

Package Quantity

1

Performance

Video Revision

HDMI 2.0b

Maximum Analog Resolutions

1920 x 1200 @ 60 Hz (VGA)

Maximum Digital Resolutions

3840 X 2160 @ 60 Hz (HDMI)

Supported Resolutions

Maximum HDMI output: 3840 X 2160 @ 60Hz

Maximum VGA output: 1920 x 1200 @ 60Hz

Lower resolutions and refresh rates may also be supported

Wide Screen Supported

Yes

Audio Specifications

HDMI - 7.1 Channel Audio

Analog Stereo - 2 Channel Audio

General Specifications

Maximum Cable Distance To HDMI Display: 7m [22.9ft]

Maximum Cable Distance To VGA Display: 30m [98.4ft]

Physical Characteristics

Color

Gray

Product Height

0.6 in [1.4 cm]

Product Length

1.8 in [4.5 cm]

Weight of Product

1.4 oz [41.0 g]

Product Width

2.4 in [6.0 cm]

Power

Power Source

Bus Powered and Host USB-C Power Adapter

Software

OS Compatibility

No Drivers or Software Required

Special Notes / Requirements

Note

This adapter does not support MST or dual-extended displays.

The 3.5mm audio output will not be active unless a display is connected to the product.

Support for dual-mirrored displays using VGA and HDMI

What's in the Box

Included in Package

1 - USB-C to HDMI and VGA Adapter
