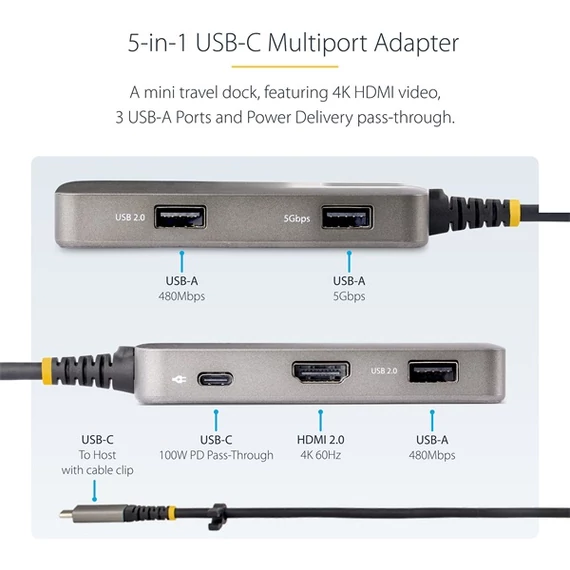

STARTECH USB-C Multiport Adapter, 1xHDMI, 1xUSB 3.0, 2xUSB 2.0, 1xType-C

Connector(s)

External Ports

1 - HDMI (19 pin)

1 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)

2 - USB 2.0 Type-A (4 pin, 480Mbps)

1 - USB Type-C (24 pin) USB Power Delivery Only

Host Connectors

1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)

Environmental

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-25°C to 65°C (-13°F to 149°F)

Humidity

0~95% RH (Non-condensing)

Hardware

4K Support

Yes

Fast-Charge Port(s)

No

Displays Supported

1

Interface

USB 3.2 Gen 1 (5Gbps)

Bus Type

USB-C

Industry Standards

HDMI 2.0b

USB 3.2 Gen 1 (5Gbps)

USB Power Delivery Specification Rev. 3.0

Certified Works with ChromeBook (WWCB)

Chipset ID

Analogix - ANX7327

Analogix - ANX7518

VIA - VL817-Q7

Packaging Information

Package Length

7,1 in [18,0 cm]

Package Width

4,5 in [11,5 cm]

Package Height

1,6 in [4,0 cm]

Shipping (Package) Weight

4,2 oz [120,0 g]

Performance

Maximum Data Transfer Rate

5Gbps

Maximum Digital Resolutions

Up to 4K (4096x2160) 60Hz

Type and Rate

USB 3.2 Gen 1 - 5 Gbit/s

UASP Support

Yes

General Specifications

Maximum Laptop Charging: 86W

Physical Characteristics

Color

Space Gray

Product Length

3,9 in [10,0 cm]

Product Width

1,9 in [4,8 cm]

Product Height

0,6 in [1,6 cm]

Weight of Product

3,7 oz [105,0 g]

Material

Plastic

Cable Length

13,8 in [35 cm]

Power

Power Source

Bus Powered and Host USB-C Power Adapter

Power Delivery

100W

Power Consumption (In Watts)

14W

Software

OS Compatibility

Windows® 10, 11
macOS 10.15, 11.0, 12.0, 13.0, 14.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™ (Certified Works with Chromebook)

Special Notes / Requirements

System and Cable Requirements

A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery 2.0 and DP alt mode).

Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).

Note

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.

If the USB-C Host does not support USB Power Delivery, the PD Power Port will not supply power to the USB-C Host.

A 4K-capable display is required to achieve UHD resolution (4K is also known as 4K x 2K).

USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).

Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.

What's in the Box

Included in Package

1 - USB-C Multiport Adapter

1 - Quick-Start Guide
