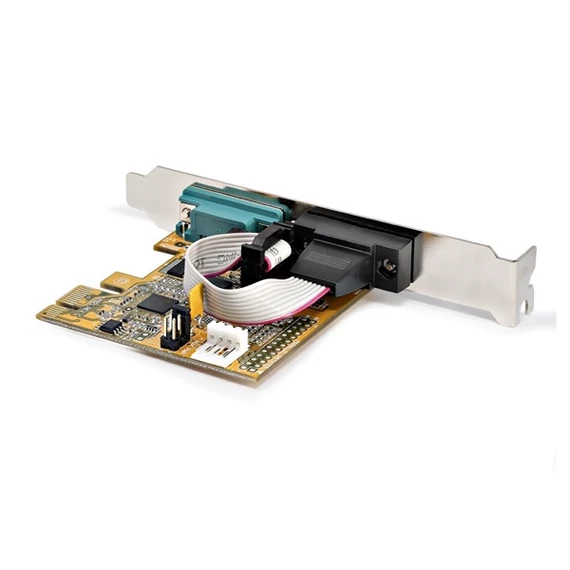

STARTECH 2xPCI-E Soros kártya to RS232 (DB9) Soros kártya Low/Full Profile

Connector(s)

Connector A

1 - PCI Express x1 Slot

External Ports

2 - DB-9 (9 pin, D-Sub) Male

Environmental

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-40°C to 75°C (-40°F to 167°F)

Humidity

5 ~ 95% RH

Hardware

Ports

2

Interface

Serial

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Industry Standards

PCI Express Version 2.0 x1

Chipset ID

ASIX - AX99100

ASIX - ZT3243LFEY

Indicators

LED Indicators

2 - Port 1. Flashes Green = Activity
Port 2. Flashes Green = Activity

Packaging Information

Package Quantity

1

Package Length

5.7 in [14.4 cm]

Package Width

8.1 in [20.7 cm]

Package Height

1.5 in [3.8 cm]

Shipping (Package) Weight

5.6 oz [160.0 g]

Performance

Serial Protocol

RS-232

Max Baud Rate

921.6 Kbps

Data Bits

5, 6, 7, 8, 9

FIFO

256 Bytes

Flow Control

Hardware and Software

Parity

Even, Odd, None, Space, and Mark

Physical Characteristics

Color

Yellow

Product Length

2.6 in [6.7 cm]

Product Width

2.6 in [6.6 cm]

Product Height

0.7 in [1.8 cm]

Weight of Product

5.6 oz [160.0 g]

Material

Steel

Software

OS Compatibility

Windows® 7, 8, 8.1, 10, 11
Windows Server® 2016, 2019
Linux 2.6.13 and older. LTS Versions Only

Special Notes / Requirements

System and Cable Requirements

Computer with an available PCI Express x1 or greater slot

What's in the Box

Included in Package

1 - Two-Port PCIe Serial Card

1 - Full Profile Bracket

2 - Low Profile Bracket

1 - Quick-Start Guide
