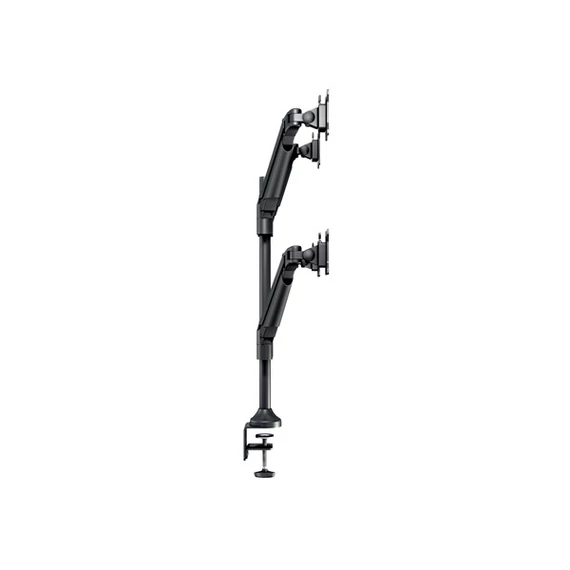

MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32", max.VESA: 100x100 mm, 21 kg)

Ugrás a termék információkhoz
MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32 MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32 MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32 MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32 MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32
MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32
MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32
MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32
MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32
MULTIBRACKETS 4 karos asztali konzol, M VESA Gas Lift Arm Quad Black HD (15-32

Paraméterek

Fali rögzítés 100x100mm VESA falitartó-támogatás
Gyártó MULTIBRACKETS
VESA szabvány szerint 75x75,100x100
238.490 Ft (187.787 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

SPECIFICATION

M VESA Gas Lift Arm I Quad HD Black

  • For screen size: 15-(32")*
  • VESA standard: 75x75 100x100 mm
  • Article No: 7 350 073 732 609
  • Colour: Black
  • Screen weight: Min. 9 kg — Max. 21 kg
  • Function: Gas driven piston
  • Warranty: 2 years
  • Weight: 10,3 kg
  • Tilt angle: +75 — -45 degrees
  • Turn angle: +90 — -90 degrees
  • Rotate: 90 degrees
  • Installation: On desk
  • Distribution package: 1 pcs
  • Single box size: 95x25x14cm
  • Distribution box size: 95x25x14cm
    .


Retail Package Specification

  • Package Parcels: 1 pcs
  • Package Measurements: 96.5 x 25.5 x 15 cm
  • Package Weight: 11.50 kg
    .


Material Specification

  • Product Weight: kg
  • Product Materials:
  • Total Package Material Weight: 1.200 kg
  • Retail Package Outer Box: 0.500 kg
  • Retail Package Inner Box: 0.650 kg
  • Plastic Material: 0.050 kg
    .


* Important regarding maximum screen size. Check prior to purchase.
The Gas Lift Arm series is a very flexible product series and can handle many screen models. When using double or quad version in combination with very large screens of sizes 24", 27", 30" or even 32" it is important to double check the compatibility with the Gas Lift Arm before usage.

General restrictions:
- Max width of a screen is 750mm
- Max height of a screen is 500mm
- Max weight of a screen is 9-21 kg

Note 1:
Some larger screen series do have measurements and weight that exceed our recommendations. Such models are not recommended to be used with the Gas Lift Arm Series.
Note 2:
If combinations of different screen sizes are used with Dual or Quad Gas Liftm Arm Series flexibility would be better.
Note 3:
If multiple larger screens are used, then the flexibility and movement between the screens are likely to decrease.

If you are uncertain, or need guidance to check that your screen fits the Gas Lift Arm Series, please do not hesitate to contact us.
