MIKROTIK GPS Antenna LTAP mini-hez - ACGPSA

Ugrás a termék információkhoz
MIKROTIK GPS Antenna LTAP mini-hez - ACGPSA

Paraméterek

Csatlakozók SMA
Gyártó MIKROTIK
2.390 Ft (1.882 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

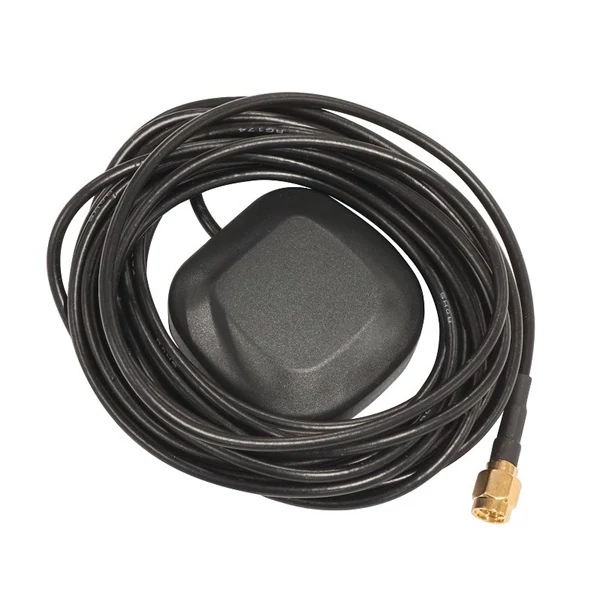

ACGPSA is standalone active GPS antenna, that works in 1575.4 MHz spectrum. Antenna size is 46.5 mm x 26.5 mm x 12.5 mm with IP67 rating and includes internal magnet and double sided tape, so it can easily be attached to various surfaces. It has a long 5m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).

Specifications

Product code: ACGPSA

Center frequency: 1575.42 Mhz

Gain: 26 dB

Water resistance: 100% waterproof (IP67)

Connector: SMA

Cable: 5 m RG-174/U (standard)

Standard mounting: Magnetic base

DC voltages: 3 V +-0.3 V

DC current: 8 mA max

Dimensions: 46.5 x 46.5 x 12.5 mm

Weight: 35 g (without cable), 120 g (with cable and connector)

Operating temperature: -40°C .. +85°C tested

Vélemények

Erről a termékről még nem érkezett vélemény... Legyél Te az első!
Írj véleményt!

Leírás és Paraméterek

ACGPSA is standalone active GPS antenna, that works in 1575.4 MHz spectrum. Antenna size is 46.5 mm x 26.5 mm x 12.5 mm with IP67 rating and includes internal magnet and double sided tape, so it can easily be attached to various surfaces. It has a long 5m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).

Specifications

Product code: ACGPSA

Center frequency: 1575.42 Mhz

Gain: 26 dB

Water resistance: 100% waterproof (IP67)

Connector: SMA

Cable: 5 m RG-174/U (standard)

Standard mounting: Magnetic base

DC voltages: 3 V +-0.3 V

DC current: 8 mA max

Dimensions: 46.5 x 46.5 x 12.5 mm

Weight: 35 g (without cable), 120 g (with cable and connector)

Operating temperature: -40°C .. +85°C tested
Csatlakozók SMA
Gyártó MIKROTIK
