MICROSOFT Surface Dock Thunderbolt 4

Compatibility

Designed for devices with USB-C^Footnote® with USB 4.0/Thunderbolt™ 4 port:

• Surface Laptop 5
• Surface Laptop Studio
• Surface Pro 8
• Surface Pro 9 (Intel/Wi-Fi)

Thunderbolt™ 4 connection supports two 4k external displays at up to 60hz (when supported by device and display)

Compatible with devices with USB-C^Footnote® port:

• Surface Pro 9 with 5G
• Surface Pro 7+
• Surface Pro 7
• Surface Pro X
• Surface Laptop 4
• Surface Laptop 3
• Surface Laptop Go 2
• Surface Laptop Go
• Surface Go 3
• Surface Go 2
• Surface Book 3
• Surface Studio 2+ (no charging)

USB-C^Footnote® connection supports one 4k external display at up to 60hz (when supported by device and display)

Not compatible devices:

• Surface Duo
• Surface Duo 2

Dimensions

5.91" x 2.95" x 0.84" (150 mm x 75 mm x 21.3 mm)

Weight

0.9 lb (410 g)

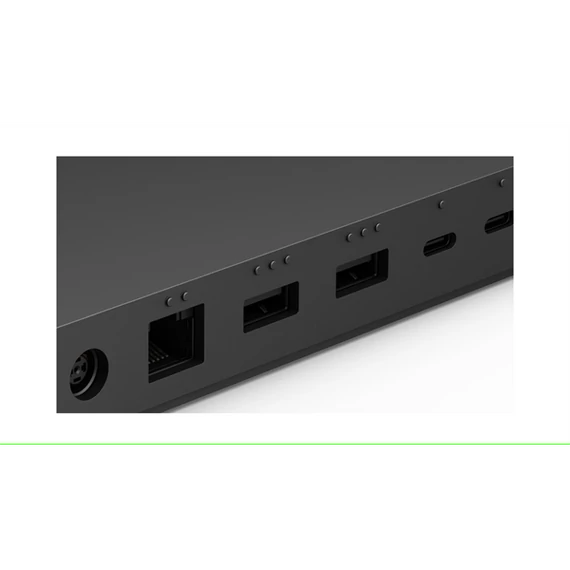

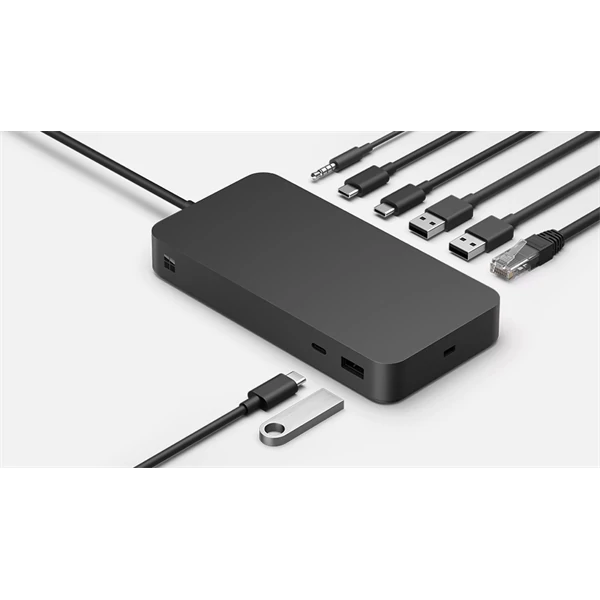

Connections

• 165 W power supply (up to 96W passthrough)
• Thunderbolt™ 4 Cable with LED charging indicator (80 cm)
• 1 front-facing USB-A (USB 3.1 Gen 2, 7.5W)
• 1 front-facing USB-C^Footnote® (USB 4 Thunderbolt™ 4, video display enabled, 15W)
• 2 rear-facing USB-A (USB 3.1 Gen 2, 7.5W)
• 2 rear-facing USB-C^Footnote® (USB 4 Thunderbolt™^Footnote 4, video display enabled, 15W)
• 1 Ethernet (2.5Gbit/s)
• 3.5 mm audio jack
• Security lock support (Kensington compatible)
• Screw nut for desk mounts
• Compatible with Cable Matters Desk Mount for Surface Thunderbolt™ 4 Dock^Footnote1

What’s in the box

Surface Thunderbolt™ 4 Dock
165W Power Supply

Manageability

For supported host devices:

• Surface Enterprise Management Mode for Dock^Footnote2
• Media Access Control (MAC) address passthrough^Footnote2
• Firmware update through Windows Update and Surface app
• Wake on LAN from Modern Standby

Accessibility

Tactile indicators for easily locating ports

Sustainability

Surface Thunderbolt™ 4 Dock and PSU enclosures (excluding AC cable) are attributed to 20% ocean-bound plastic^Footnote3
Sustainable Products & Solutions | Microsoft CSR
