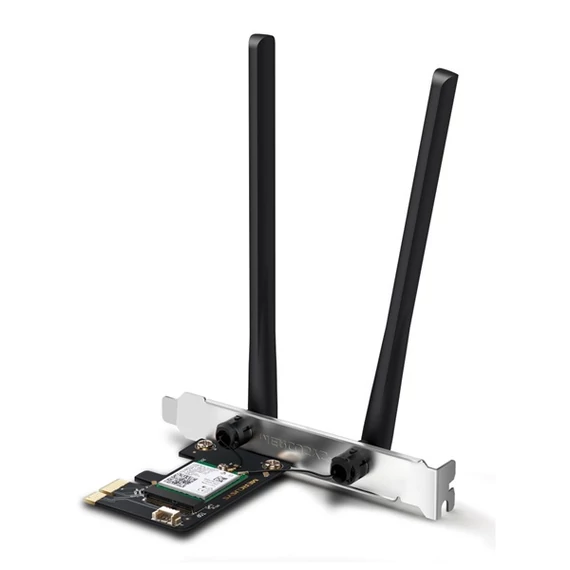

MERCUSYS Wireless Adapter PCI-Express 5.2 Dual Band AX3000 Wifi 6 Bluetooth, MA80XE
Paraméterek
| Tulajdonság | Érték |
|---|---|
| Csatlakozók | PCI-E, Blutetooth |
| Csatoló | PCI-e |
| Frekvencia | 2.4 Ghz és 5 Ghz |
| Gyártó | TP-LINK |
| Szabvány | 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
-
Elérhetőség:
Rendelhető
- Gyártó: Tp-link
- Gyártó cikkszám: MA80XE
- ChipVilág Cikkszám: 348850
- Ugrás az összehasonlító modulhoz
Leírás
- Wireless Standards
-
IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz - WiFi Speeds
-
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz - Reception Sensitivity
-
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm - Wireless Security
-
WPA-PSK/WPA2-PSK/WPA3-SAE
- Wireless
- Dimensions
-
8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)
- Antenna Type
-
2× Fixed High-Performance Omni-Directional Antennas
- Hardware
- Package Contents
-
AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD - Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing - System Requirements
-
Supported operating systems include Windows 10, 11(64-bit)
- Others
Vélemények
Termékfülek
Leírás és Paraméterek
- Wireless Standards
-
IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz - WiFi Speeds
-
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz - Reception Sensitivity
-
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm - Wireless Security
-
WPA-PSK/WPA2-PSK/WPA3-SAE
- Wireless
- Dimensions
-
8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)
- Antenna Type
-
2× Fixed High-Performance Omni-Directional Antennas
- Hardware
- Package Contents
-
AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD - Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing - System Requirements
-
Supported operating systems include Windows 10, 11(64-bit)
- Others
| Tulajdonság | Érték |
|---|---|
| Csatlakozók | PCI-E, Blutetooth |
| Csatoló | PCI-e |
| Frekvencia | 2.4 Ghz és 5 Ghz |
| Gyártó | TP-LINK |
| Szabvány | 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
