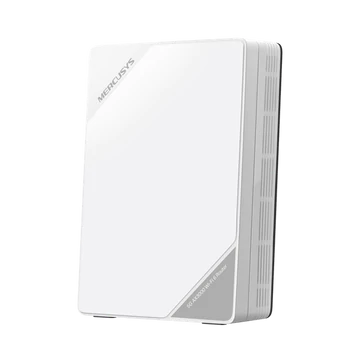

MERCUSYS 4G/5G Modem + Wireless Router AX3000 1xWAN/LAN(2500Mbps) +1xLAN(1000Mpbs), MB520-5G
Paraméterek
| Tulajdonság | Érték |
|---|---|
| Frekvencia | 2.4 Ghz és 5 Ghz |
| Gyártó | TP-LINK |
| Szabvány | 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
-
Elérhetőség:
Rendelhető
- Gyártó: Tp-link
- Gyártó cikkszám: MB520-5G
- ChipVilág Cikkszám: 380827
- Ugrás az összehasonlító modulhoz
Leírás
- Wireless Standards
-
IEEE 802.11ax/ac/a/b/g/n
- Frequency
-
5 GHz, 2.4 GHz
- WiFi Speeds
-
2402 Mbps at 5 GHz
574 Mbps at 2.4 GHz
- Reception Sensitivity
-
5 GHz:
11ax HE20: -64 dBm
11ax HE40: -61 dBm
11ax HE80: -59 dBm
11ax HE160: -56 dBm
11ac VHT20: -70 dBm
11ac VHT40: -67 dBm
11ac VHT80: -64 dBm
2.4 GHz:
11ax HE20: -66 dBm
11ax HE40: -62 dBm
11ac VHT20: -71 dBm
11ac VHT40: -67 dB
- Transmission Power
-
EIRP (CE):
≤20dbm(2.4GHz);
≤23dbm(5G band1/band2); ≤30dbm(5G band3)
- Wireless Security
-
WPA-PSK / WPA2-PSK / WPA3-SAE
- Wireless Functions
-
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
- Wireless
- Dimensions
-
190 × 130 × 69.7 mm
(7.5 × 5.1 × 2.7 in)
- Interfaces
-
1× 2.5 Gbps WAN/LAN Port
1× 1 Gbps LAN Port
1× RJ11 Phone Port
1× Nano SIM Card Slot
2× SMA Antenna Ports
- Button
-
WPS, Reset Button
- Network Type (Invalid)
-
5G:
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
(2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE:
B1/B3/B5/B7/B8/B20/B28
(2100/1800/850/2600/900/800/700 ΜHz)
TDD-LTE:
B38/B40/B41/B42/B43
(2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA+/HSPA/UMTS:
B1/B5/B8
(2100/850/900 MHz)
- Hardware
- DHCP
-
Server
- Software
- Package Contents
-
5G AX3000 Wireless Dual Band Router (MB520-5G)
Power Adapter
RJ45 Ethernet Cable
RJ11 Phone Cable
Quick Installation Guide
- Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
- Others
