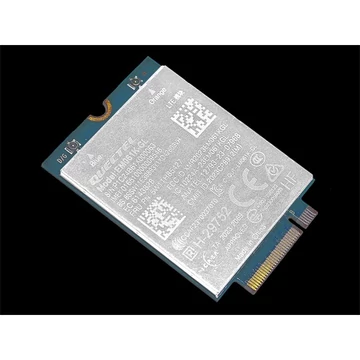

Lenovo ThinkPad ACC - Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module
Paraméterek
| Tulajdonság | Érték |
|---|---|
| Gyártó | LENOVO |
-
Elérhetőség:
Rendelhető
- Gyártó: Lenovo-com
- Gyártó cikkszám: 4XC1Q24438
- ChipVilág Cikkszám: 358295
- Ugrás az összehasonlító modulhoz
Leírás
ThinkPad Quectel EM061K-GL LTE-A CAT6 M.2 WWAN Module is an LTE advanced category 6 module. This module supports a theoretical peak rate of 300 Mbps in the downlink and a theoretical peak data rate of 50Mbps in the uplink. Designed in M.2 form factor, the module facilitates customers' migration between different modules. In addition, it provides quicker, more accurate and more dependable positioning capability. OS IndependentFeature
Product Description
Top Features
Tech Specs
JAN
4582763354157
EAN
0195892103172
UPC
195892103172
Warranty Type
Customer Replaceable Unit (CRU)
Warranty Period
1 Year
Other Physical Specifications
Interface: M.2 Key-B
Other Operating Environment
Extended operating temperature: –40? to +85? Storage temperature: –40? to +90?
Other Electrical Specifications
Antenna Connector: WWAN Antenna x 2 Protocol Stack: IPV4/IPV6 Firmware Update: USB
Maximum Relative Humidity (%)
95%
Minimum Relative Humidity (%)
5%
Maximum Operating Temperature
75?
Minimum Operating Temperature
-25?
Packed Weight
0.03kg
Packed Dimensions (L x D x H)
53*144*177
Package Type
Brown box
Hardware Requirements
USB2.0 M.2 Interface
Carriers
AT&T/ T-Mobile/ Verizon/ Vodafone/ EE/ Swisscom/ Deutsche Telekom/ Telefonica/ NTT Docomo/ KDDI/ Softbank/ CUCC
Agency Approvals
NCC*/ ANATEL*/ SRRC*/ NAL*/ CCC*/ CE*/ FCC*/ IC*/ RCM*/ PTCRB*/ GCF*/ UKCA*/ KC*/ JATE*/ TELEC*/ NBTC*/ IMDA*/ ICASA*IMDA*/ ICASA*
Shipment Group
WWAN module Warranty poster
Product Weight
6.2g
Height
2.3mm
Depth
30mm
Length
42mm
Voltage
3.135––4.4 V, typ. 3.3
Supported Band
LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B2/B3/B4/B5/B6/B8/B19
Supported OS
Windows 11
Brand
ThinkPad
Compatibility
Operating System
Compatible Machines
Description
ID
Footnote
ThinkPad L13 Series-L13 2-in-1 G5
21LM
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LN
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L13 Series-L13 Clam G5
21LB
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LC
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L14 Series-L14 AMD G5
21L5
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L6
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L14 Series-L14 G5
21L1
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L2
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L16 Series-L16 AMD G1
21L7
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L8
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad L16 Series-L16 G1
21L3
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21L4
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad T14 Series-T14 AMD G5
21MC
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21MD
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad T14 Series-T14 G5
21ML
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21MM
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad T14 Series-T14s G5
21LS
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21LT
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad T16 Series-T16 G3
21MN
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
21MQ
Compatible with Wireless WAN (WWAN) Ready ThinkPad models with 4G WWAN antenna
ThinkPad X13 series-X13 2-in-1 G5
21LW
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LX
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
ThinkPad X13 series-X13 G5
21LU
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
21LV
124. Compatible with Wireless WAN (WWAN) Ready ThinkPad models. WWAN Ready models are ThinkPad systems with an installed WWAN attenna.
