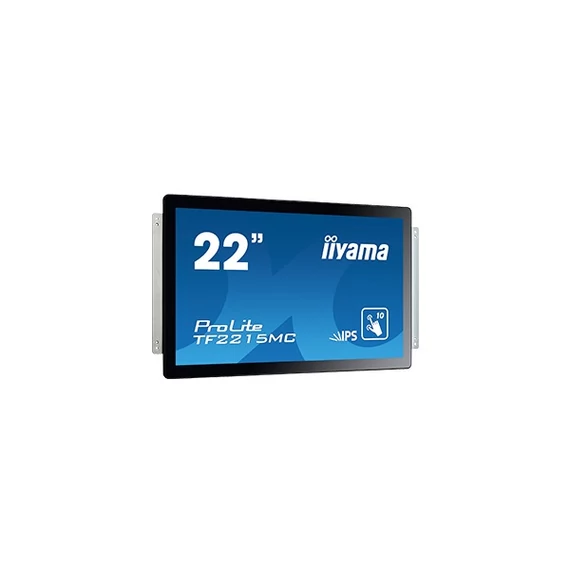

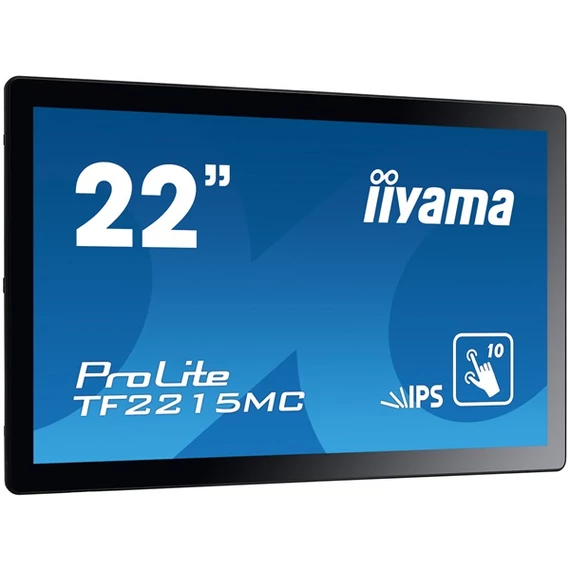

iiyama touch monitor, 21,5", 1920x1080, 16:9, 315cd, 14ms, 1000:1,VGA/HDMI/DP, Open frame, TF2215MC
Paraméterek
| Tulajdonság | Érték |
|---|---|
| D-Sub | Van |
| Display Port | Van |
| Fali rögzítés | 100x100mm VESA falitartó-támogatás |
| Fejhallgató kimenet | Van |
| Felbontás | 1920 x 1080 (FHD1080) 16:9 |
| Fényerő | 310 |
| Gyártó | IIYAMA |
| HDMI | Van |
| Képarány | 16:9 |
| Képátló | 21.5 |
| Panel típus | IPS |
| Típus | Touch monitor |
| USB | Van |
| Válaszidő | 14 |
-
Elérhetőség:
Rendelhető
- Gyártó: Iiyama
- Gyártó cikkszám: TF2215MC-B2
- ChipVilág Cikkszám: 324526
- Ugrás az összehasonlító modulhoz
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van
Leírás
DISPLAY CHARACTERISTICS
| Design | Open Frame |
| Diagonal | 21.5", 54.6cm |
| Panel | IPS LED |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 350 cd/m² |
| Brightness | 315 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 1000:1 |
| Response time (BTB) | 14ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Horizontal Sync | 31.4 - 82kHz |
| Viewable area W x H | 476.064 x 267.786mm, 18.7 x 10.5" |
| Pixel pitch | 0.24795mm |
| Bezel colour and finish | black |
TOUCH
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
INTERFACES / CONNECTORS / CONTROLS
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 |
| HDCP | yes |
FEATURES
| Extra | anti-fingerprint coating, touch through-glass |
| Glass hardness | 7H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| Water tight seal | yes |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
MECHANICAL
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
POWER MANAGEMENT
| Power supply unit | external |
| Power supply | DC 12 V |
| Power usage | 20.8W typical, 1.05W stand by, 0.32W off mode |
SUSTAINABILITY
| Regulations | CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 520 x 315 x 42.5mm |
| Weight (without box) | 4.4kg |
| EAN code | 4948570116768 |
RELATED INFORMATION
| Related products | OMK3-1 |
Vélemények
Erről a termékről még nem érkezett vélemény... Legyél Te az első!
Írj véleményt!
Termékfülek
Leírás és Paraméterek
DISPLAY CHARACTERISTICS
| Design | Open Frame |
| Diagonal | 21.5", 54.6cm |
| Panel | IPS LED |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 350 cd/m² |
| Brightness | 315 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 1000:1 |
| Response time (BTB) | 14ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Horizontal Sync | 31.4 - 82kHz |
| Viewable area W x H | 476.064 x 267.786mm, 18.7 x 10.5" |
| Pixel pitch | 0.24795mm |
| Bezel colour and finish | black |
TOUCH
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
INTERFACES / CONNECTORS / CONTROLS
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 |
| HDCP | yes |
FEATURES
| Extra | anti-fingerprint coating, touch through-glass |
| Glass hardness | 7H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| Water tight seal | yes |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
MECHANICAL
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
POWER MANAGEMENT
| Power supply unit | external |
| Power supply | DC 12 V |
| Power usage | 20.8W typical, 1.05W stand by, 0.32W off mode |
SUSTAINABILITY
| Regulations | CB, CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 520 x 315 x 42.5mm |
| Weight (without box) | 4.4kg |
| EAN code | 4948570116768 |
RELATED INFORMATION
| Related products | OMK3-1 |
| Tulajdonság | Érték |
|---|---|
| D-Sub | Van |
| Display Port | Van |
| Fali rögzítés | 100x100mm VESA falitartó-támogatás |
| Fejhallgató kimenet | Van |
| Felbontás | 1920 x 1080 (FHD1080) 16:9 |
| Fényerő | 310 |
| Gyártó | IIYAMA |
| HDMI | Van |
| Képarány | 16:9 |
| Képátló | 21.5 |
| Panel típus | IPS |
| Típus | Touch monitor |
| USB | Van |
| Válaszidő | 14 |
Hasonló termékek
MSI Monitor GAMING MPG 271QRX QD-OLED 26,5" WQHD 2560x1440, 360Hz, 150000:1 CR, 250cd/m2, 0,03ms, 2x HDMI, DP, USB-C
Gyártó cikkszám:9S6-3CD79A-001
2 db Raktáron
Ár:
235.290 Ft
ASUS XG27AQDMGR ROG Strix Monitor 27" OLED, 2560x1440, 2xHDMI/Displayport, 240Hz, HDR
Gyártó cikkszám:XG27AQDMGR
20 db Raktáron
Ár:
229.290 Ft
LENOVO Monitor - ThinkVision T27UD-40; 27" 4K 3048x2160 IPS 60Hz, 16:9, 1500:1, 350cd/m2, 4ms, HDMI, DP, USB AC, RJ45
Gyártó cikkszám:64AFGAT2EU
35 db Raktáron
Ár:
227.690 Ft
GIGABYTE OLED Monitor 27" MO27Q28G 2560x1440, 2xHDMI/Displayport/4xUSB
Gyártó cikkszám:MO27Q28G
26 db Raktáron
Ár:
225.790 Ft
Philips EVNIA Ívelt Gaming OLED monitor 34", 34M2C6500/00 3440x1440, 21:9, 0,03ms, 2xHDMI/DP/4xUSB, áll. mag., Ambiglow
Gyártó cikkszám:34M2C6500/00
12 db Raktáron
Ár:
241.290 Ft

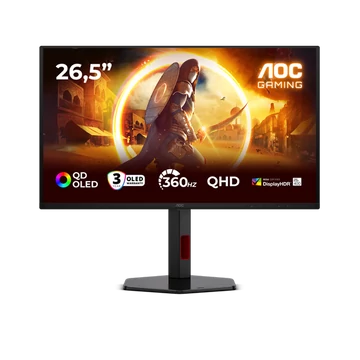

AOC OLED Gaming monitor 26,5" Q27G4SDR 2560x1440, 16:9, 1000cd/m2, 0,03ms, HDMI/DisplayPort/2xUSB,360 Hz, áll.mag.,pivot
