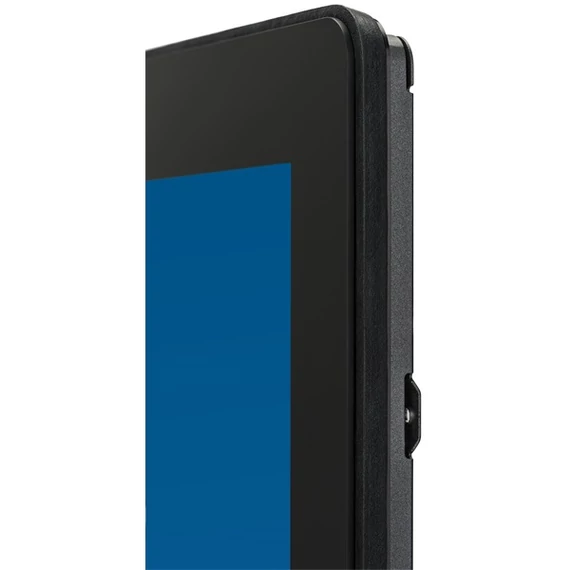

iiyama touch monitor, 15", 1024x768, 4:3 315cd, 8ms, 800:1,VGA/HDMI/DP, Open frame, TF1515MC
Paraméterek
| Tulajdonság | Érték |
|---|---|
| D-Sub | Van |
| Display Port | Van |
| Fali rögzítés | 100x100mm VESA falitartó-támogatás |
| Fejhallgató kimenet | Van |
| Felbontás | 1024 x 768 (XGA) 4:3 |
| Fényerő | 310 |
| Gyártó | IIYAMA |
| HDMI | Van |
| Képarány | 4:3 |
| Képátló | 15 |
| Panel típus | TN |
| Típus | Touch monitor |
| USB | Van |
| Válaszidő | 8 |
-
Elérhetőség:
Rendelhető
- Gyártó: Iiyama
- Gyártó cikkszám: TF1515MC-B2
- ChipVilág Cikkszám: 324551
- Ugrás az összehasonlító modulhoz
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van
Leírás
DISPLAY CHARACTERISTICS
| Design | Open Frame |
| Diagonal | 15", 38cm |
| Panel | TN LED |
| Native resolution | 1024 x 768 (0.8 megapixel) |
| Aspect ratio | 4:3 |
| Panel brightness | 350 cd/m² |
| Brightness | 315 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 800:1 with touch |
| Response time (BTB) | 8ms |
| Viewing zone | horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75° |
| Colour support | 16.2mln (6bit + Hi-FRC) |
| Horizontal Sync | 31.4 - 60kHz |
| Viewable area W x H | 304.1 x 228.1mm, 12 x 9" |
| Pixel pitch | 0.297mm |
| Bezel colour and finish | black |
TOUCH
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
INTERFACES / CONNECTORS / CONTROLS
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 |
| HDCP | yes |
FEATURES
| Extra | anti-fingerprint coating, touch through-glass, foam seal |
| Glass hardness | 7H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | menu,scroll up/ brightness, scroll down/ contrast, select, power |
| User controls | picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
MECHANICAL
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Remote control | external control pad |
POWER MANAGEMENT
| Power supply unit | external |
| Power supply | DC 12 V |
| Power usage | 16W typical, 1.2W stand by |
SUSTAINABILITY
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 364 x 291 x 41.5mm |
| Box dimensions W x H x D | 460 x 470 x 175mm |
| Pallet volume | 44pcs |
| Pallet dimensions W x H x D | 860 x 970 x 120mm |
| Weight (without box) | 2.9kg |
| Weight (with box) | 4.6kg |
| EAN code | 4948570116751 |
RELATED INFORMATION
| Related products | OMK2-1 |
Vélemények
Erről a termékről még nem érkezett vélemény... Legyél Te az első!
Írj véleményt!
Termékfülek
Leírás és Paraméterek
DISPLAY CHARACTERISTICS
| Design | Open Frame |
| Diagonal | 15", 38cm |
| Panel | TN LED |
| Native resolution | 1024 x 768 (0.8 megapixel) |
| Aspect ratio | 4:3 |
| Panel brightness | 350 cd/m² |
| Brightness | 315 cd/m² with touch |
| Light transmittance | 90% |
| Static contrast | 800:1 with touch |
| Response time (BTB) | 8ms |
| Viewing zone | horizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75° |
| Colour support | 16.2mln (6bit + Hi-FRC) |
| Horizontal Sync | 31.4 - 60kHz |
| Viewable area W x H | 304.1 x 228.1mm, 12 x 9" |
| Pixel pitch | 0.297mm |
| Bezel colour and finish | black |
TOUCH
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
INTERFACES / CONNECTORS / CONTROLS
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| Audio output | Mini jack x1 |
| HDCP | yes |
FEATURES
| Extra | anti-fingerprint coating, touch through-glass, foam seal |
| Glass hardness | 7H |
| 60950 Ball drop test | yes |
| Water and dust protection | IP65 (front) |
| OSD key lock | yes |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | menu,scroll up/ brightness, scroll down/ contrast, select, power |
| User controls | picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
MECHANICAL
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
ACCESSORIES INCLUDED
| Cables | power, USB, HDMI, DP |
| Guides | quick start guide, safety guide |
| Other | AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad |
| Remote control | external control pad |
POWER MANAGEMENT
| Power supply unit | external |
| Power supply | DC 12 V |
| Power usage | 16W typical, 1.2W stand by |
SUSTAINABILITY
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, cULus, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | E |
| REACH SVHC | above 0.1%: Lead |
DIMENSIONS / WEIGHT
| Product dimensions W x H x D | 364 x 291 x 41.5mm |
| Box dimensions W x H x D | 460 x 470 x 175mm |
| Pallet volume | 44pcs |
| Pallet dimensions W x H x D | 860 x 970 x 120mm |
| Weight (without box) | 2.9kg |
| Weight (with box) | 4.6kg |
| EAN code | 4948570116751 |
RELATED INFORMATION
| Related products | OMK2-1 |
