Termékfülek
Leírás és Paraméterek

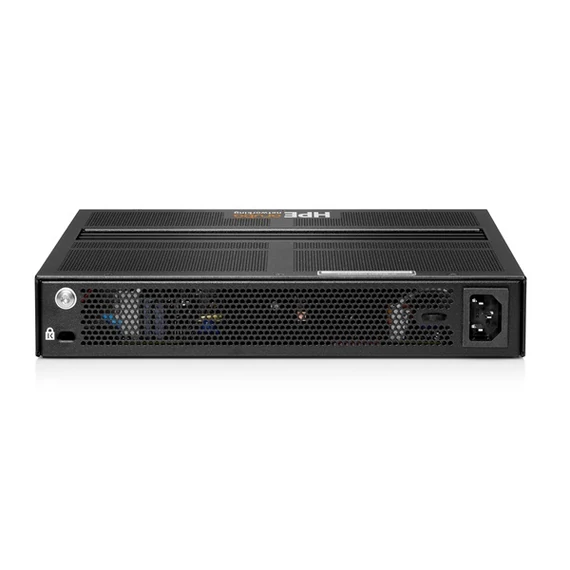

Product 6200F 12G CL4 PoE 2G/2SFP+
Part Number R8Q72A
Switch Type Fixed Port
Network OS ArubaOS-CX
Routing / Switching Layer 3 Dynamic
Management Fully Managed
Included Accessories
Included Accessories N/A
Physical Properties
Dimensions 10.0(w) x 12.0(d) x 1.73(h) in
Weight 7.10 lb (3.22 kg)
Port Types
LAN Ports 12 10/100/1000 CL4 PoE ports+ 2x 1GbE ports
Dual Personality Ports N/A
1/2.5/5/10GbE N/A
SFP Ports N/A
SFP+ Ports 2 SFP+ 1/10GbE ports; PHY-less
SFP28 Ports N/A
SFP56 Ports N/A
XFP Ports N/A
X2 Ports N/A
CX4 Ports N/A
10GBASE-T Ports N/A
QSFP+ Ports N/A
QSFP28 Ports N/A
QSFP56 Ports N/A
QSFP-DD Ports N/A
Module Slots N/A
Console Port 1x USB-C Console Port
Power Supplies
Power supply slots N/A
Power supply requirements N/A
Memory and Processor
Memory and Processor Quad Core ARM Cortex A72 @ 1.2 GHz, 8 GB DDR4; 16 GB eMMC; Packet buffer size: 8 MB
Gigabit Module N/A
10Gb Module N/A
Management Module N/A
Fabric Module N/A
I/O Module N/A
Mounting
Mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
Performance
100 Mb Latency N/A
1000 Mb Latency < 3.8 µs (LIFO 64-byte packets)
10 Gbps Latency < 2.9 µs (LIFO 64-byte packets)
40 Gbps Latency N/A
Throughput up to 45.1 Mpps
Switching Capacity 68 Gbps
Switch Fabric Speed N/A
Routing Table Size 2,048 IPv4, 1,024 IPv6
MAC Address Table Size 16,000 entries
MACsec Capable Hardware No
MACsec Software Support No
MACsec with EAP-TLS No
MACsec Capable Uplink Ports No
Electrical Characteristics
Description N/A
Voltage 90-264V
