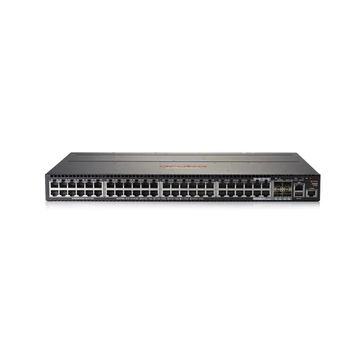

HPE Aruba 2930M 48G with 1-slot Switch

Aruba 2930M 48G 1-slot Switch (JL321A)

I/O ports and slots

44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T); Duplex: 10BASE-T/100BASE-TX:half or full;1000BASE-T:full only

4 Combo 10/100/1000BASE-T or 100/1000Mbps SFP Ports

Additional ports and slots

1 Dual Personality (RJ-45 or USB Micro-B) serial console port

1 USB B port for uploading/ downloading files

1 100BASE-T Out of Band Management Port

1 Uplink Slot

1 Stacking Module Slot

2 Power Supply Slots (power supplies not included)

Physical characteristics

Dimensions

1.73" (Height) x 17.42" (Width) x 12.77" (Depth) (4.39cm x 44.25cm x 32.43cm)

Weight

10.14 lbs 4.60 kg

Memory and processor

Dual Core ARM Cortex A9 @ 1016 MHz

1 GB DDR3 SDRAM

Packet Buffer Size: 12.38 MB 4.5MB Ingress/7.875MB Egress

4GB eMMC

Performance

10 Mbps Latency

< 98.5us (FIFO 64 byte packets)

100 Mbps Latency

<11.8us (FIFO 64-byte Packets)

1000 Mbps Latency

< 3.1us (FIFO 64-byte packets)

10Gbps Latency

<3.4us (FIFO 64-byte packets)

Throughput

112 Mpps

Stacking Performance

100 Gbps

Switching Capacity

176 Gbps

Switching Capacity

(including Stacking)

276 Gbps

Routing table Size

10000 entries (IPv4), 5000 entries (IPv6)

Mac Address Table Size

32768 entries

Environment

Operating temperature

32° F to 131°F (0° C to 55° C) up to 5000ft, 32° F to 122°F (0° C to 50° C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft

Operating relative humidity

15%to 95% (Non-condens- ing) 10,000 ft

Nonoperating/Storage temperature

-40°C to 70°C up to 15000 ft

Nonoperating/Storage relative humidity

90% at 65°C (non-condens- ing); 15,000 ft

Acoustic

Sound Power LWaD=4.6 Bel, Sound Pressure LpAm, Bystander = 28.8 dB

Primary Airflow direction

Front to Back

Electrical  Characteristics

Frequency

50/60Hz

Maximum Heat Dissipation

185 BTU/hr

194kJ/hr

Voltage

JL085A PSU: 100-127/200- 240

Current

JL085A PSU: 1A/0.5A

Maximum power rating

111W

Idle Power

36W

PoE Power
(Max Possible)

N/A

Hibernate Power

7W

Notes

Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
