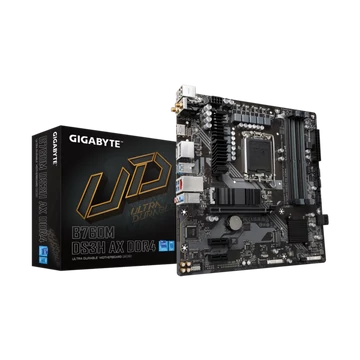

GIGABYTE Alaplap S1700 B760M DS3H AX DDR4 INTEL B760, mATX

Ugrás a termék információkhoz
GIGABYTE Alaplap S1700 B760M DS3H AX DDR4 INTEL B760, mATX GIGABYTE Alaplap S1700 B760M DS3H AX DDR4 INTEL B760, mATX
GIGABYTE Alaplap S1700 B760M DS3H AX DDR4 INTEL B760, mATX
GIGABYTE Alaplap S1700 B760M DS3H AX DDR4 INTEL B760, mATX

Paraméterek

Audio 7.1 HD
Chipset gyártó Intel
D-Sub Nincs
Display Port Van
DVI Nincs
Foglalat típusa S1700
Gyártó GIGABYTE
HDMI Van
Kivitel dobozos
LAN1 100/1000/2500 Mb/s
M.2 foglalat Van
Max memória 128
Memória foglalatok száma 4
Memória órajel 3200
Memória típus DDR4
Párhuzamos port Nincs
PCI-E foglalatok száma 2
PS/2 Port 1
Quad Channel Nincs
Raid Igen
SATA III 4
Soros port Nincs
Thunderbolt Nincs
USB 2.0 6
USB 3.1 6
VGA integrált Nincs
Wireless Van
44.890 Ft (35.346 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

  • CPU
    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B760 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version.
    (Graphics specifications may vary depending on CPU support.)

    Support for up to triple-display at the same time
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    AMD Wi-Fi 6E RZ608 (MT7921K)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. LUETOOTH 5.2
    3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    3. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    14. 1 x S/PDIF Out header
    15. 1 x Q-Flash Plus button
    16. 1 x reset button
    17. 1 x reset jumper
    18. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 2 x SMA antenna connectors (2T2R)
    4. 1 x HDMI port
    5. 2 x DisplayPorts
    6. 3 x USB 3.2 Gen 1 ports
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.

  • Vélemények

    Erről a termékről még nem érkezett vélemény... Legyél Te az első!
    Írj véleményt!

Leírás és Paraméterek

  • CPU
    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® B760 Express Chipset
  • Memory
    1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3
    3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version.
    (Graphics specifications may vary depending on CPU support.)

    Support for up to triple-display at the same time
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    AMD Wi-Fi 6E RZ608 (MT7921K)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. LUETOOTH 5.2
    3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    3. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    14. 1 x S/PDIF Out header
    15. 1 x Q-Flash Plus button
    16. 1 x reset button
    17. 1 x reset jumper
    18. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 2 x SMA antenna connectors (2T2R)
    4. 1 x HDMI port
    5. 2 x DisplayPorts
    6. 3 x USB 3.2 Gen 1 ports
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • Audio 7.1 HD
    Chipset gyártó Intel
    D-Sub Nincs
    Display Port Van
    DVI Nincs
    Foglalat típusa S1700
    Gyártó GIGABYTE
    HDMI Van
    Kivitel dobozos
    LAN1 100/1000/2500 Mb/s
    M.2 foglalat Van
    Max memória 128
    Memória foglalatok száma 4
    Memória órajel 3200
    Memória típus DDR4
    Párhuzamos port Nincs
    PCI-E foglalatok száma 2
    PS/2 Port 1
    Quad Channel Nincs
    Raid Igen
    SATA III 4
    Soros port Nincs
    Thunderbolt Nincs
    USB 2.0 6
    USB 3.1 6
    VGA integrált Nincs
    Wireless Van
