GIGABYTE Alaplap AM4 B550M AORUS PRO AMD B550, mATX

Ugrás a termék információkhoz
GIGABYTE Alaplap AM4 B550M AORUS PRO AMD B550, mATX GIGABYTE Alaplap AM4 B550M AORUS PRO AMD B550, mATX
GIGABYTE Alaplap AM4 B550M AORUS PRO AMD B550, mATX
GIGABYTE Alaplap AM4 B550M AORUS PRO AMD B550, mATX

Paraméterek

Audio 7.1 HD
Chipset gyártó AMD
D-Sub Nincs
Display Port Van
DVI Nincs
Foglalat típusa AM4
Grafikus foglalat 2 x PCI-Ex16x
Gyártó GIGABYTE
HDMI Van
Kivitel dobozos
M.2 foglalat Van
Max memória 128
Memória foglalatok száma 4
Memória órajel 3200
Memória típus DDR4
Párhuzamos port Nincs
PCI-E foglalatok száma 1
Quad Channel Nincs
Raid Igen
SATA III 6
Soros port Nincs
Thunderbolt Nincs
USB 2.0 8
USB 3.1 8
VGA integrált Nincs
Wireless Nincs
75.290 Ft (59.283 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

  • CPU
    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3. New Generation AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    2. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 3.0 x4 mode
    1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+1 USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x serial port header
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
    18. 1 x Thunderbolt header
  • Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 1 x DisplayPort
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 1 x USB 3.2 Gen 2 Type-A port (red)
    6. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS

    3. Vélemények

      Erről a termékről még nem érkezett vélemény... Legyél Te az első!
      Írj véleményt!

Leírás és Paraméterek

  • CPU
    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3. New Generation AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    2. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 3.0 x4 mode
    1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+1 USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 1 x serial port header
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
    18. 1 x Thunderbolt header
  • Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 1 x DisplayPort
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 1 x USB 3.2 Gen 2 Type-A port (red)
    6. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 1 x optical S/PDIF Out connector
    10. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Audio 7.1 HD
      Chipset gyártó AMD
      D-Sub Nincs
      Display Port Van
      DVI Nincs
      Foglalat típusa AM4
      Grafikus foglalat 2 x PCI-Ex16x
      Gyártó GIGABYTE
      HDMI Van
      Kivitel dobozos
      M.2 foglalat Van
      Max memória 128
      Memória foglalatok száma 4
      Memória órajel 3200
      Memória típus DDR4
      Párhuzamos port Nincs
      PCI-E foglalatok száma 1
      Quad Channel Nincs
      Raid Igen
      SATA III 6
      Soros port Nincs
      Thunderbolt Nincs
      USB 2.0 8
      USB 3.1 8
      VGA integrált Nincs
      Wireless Nincs

Hasonló termékek

MSI Alaplap S1700 PRO Z790-P WIFI Intel Z790, ATX

MSI Alaplap S1700 PRO Z790-P WIFI Intel Z790, ATX

Gyártó cikkszám:PRO Z790-P WIFI
29 db Raktáron
74.990 Ft
db Kosárba!
Részletek
GIGABYTE Alaplap AM5 B850 GAMING X WIFI6E AMD B850, ATX

GIGABYTE Alaplap AM5 B850 GAMING X WIFI6E AMD B850, ATX

Gyártó cikkszám:B850 GAMING X WIFI6E
1 db Raktáron
75.690 Ft
db Kosárba!
Részletek
MSI Alaplap AM5 B850 GAMING PLUS WIFI AMD B850, ATX

MSI Alaplap AM5 B850 GAMING PLUS WIFI AMD B850, ATX

Gyártó cikkszám:B850 GAMING PLUS WIFI
55 db Raktáron
73.290 Ft
db Kosárba!
Részletek
ASUS Alaplap AM5 ROG STRIX B650E-F GAMING WIFI AMD B650, ATX

ASUS Alaplap AM5 ROG STRIX B650E-F GAMING WIFI AMD B650, ATX

Gyártó cikkszám:ROG STRIX B650E-F GAMING WIFI
61 db Raktáron
77.490 Ft
db Kosárba!
Részletek

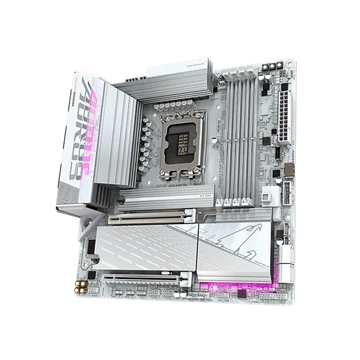

GIGABYTE Alaplap S1851 B860M AORUS ELITE WIFI6E ICE INTEL B860, mATX

GIGABYTE Alaplap S1851 B860M AORUS ELITE WIFI6E ICE INTEL B860, mATX

Gyártó cikkszám:B860M AORUS ELITE WIFI6E ICE
2 db Raktáron
77.790 Ft
db Kosárba!
Részletek

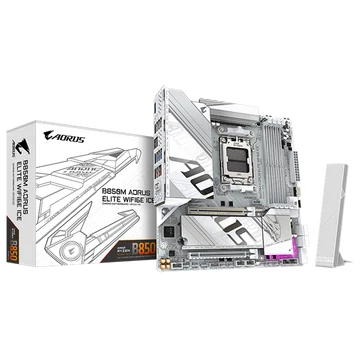

GIGABYTE Alaplap AM5 B850M AORUS ELITE WIFI6E ICE AMD B850, ATX

GIGABYTE Alaplap AM5 B850M AORUS ELITE WIFI6E ICE AMD B850, ATX

Gyártó cikkszám:B850M AORUS ELITE WIFI6E ICE
14 db Raktáron
77.790 Ft
db Kosárba!
Részletek
GIGABYTE Alaplap AM5 B850M AORUS ELITE WIFI6E AMD B850, mATX

GIGABYTE Alaplap AM5 B850M AORUS ELITE WIFI6E AMD B850, mATX

Gyártó cikkszám:B850M AORUS ELITE WIFI6E
10 db Raktáron
77.790 Ft
db Kosárba!
Részletek
ASUS Alaplap AM5 TUF GAMING B850M-PLUS WIFI7 AMD B850, mATX

ASUS Alaplap AM5 TUF GAMING B850M-PLUS WIFI7 AMD B850, mATX

Gyártó cikkszám:TUF GAMING B850M-PLUS WIFI7
6 db Raktáron
72.390 Ft
db Kosárba!
Részletek
