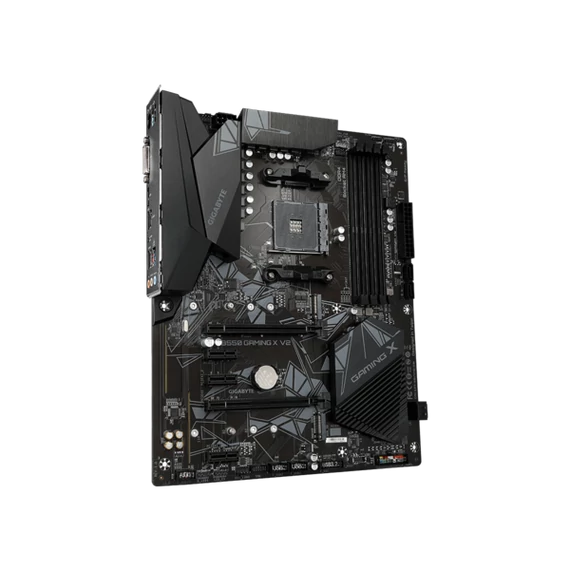

GIGABYTE Alaplap AM4 B550 GAMING X V2 AMD B550, ATX

Ugrás a termék információkhoz
GIGABYTE Alaplap AM4 B550 GAMING X V2 AMD B550, ATX GIGABYTE Alaplap AM4 B550 GAMING X V2 AMD B550, ATX
GIGABYTE Alaplap AM4 B550 GAMING X V2 AMD B550, ATX
GIGABYTE Alaplap AM4 B550 GAMING X V2 AMD B550, ATX

Paraméterek

Audio 7.1 HD
Chipset gyártó AMD
D-Sub Nincs
Display Port Nincs
DVI Van
Foglalat típusa AM4
Form Factor ATX
Grafikus foglalat 2 x PCI-Ex16x
Gyártó GIGABYTE
HDMI Van
Kivitel dobozos
M.2 foglalat Van
Max memória 128
Memória foglalatok száma 4
Memória órajel 3200
Memória típus DDR4
Párhuzamos port Nincs
PCI-E foglalatok száma 3
PS/2 Port 1
Quad Channel Nincs
Raid Igen
SATA III 4
Soros port Nincs
Thunderbolt Nincs
USB 2.0 6
USB 3.1 7
VGA integrált Nincs
Wireless Nincs
42.690 Ft (33.614 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

  • CPU
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 series processors:
      Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
    1. Supporting PCIe 3.0 x2 mode
    3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    Chipset:
    1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2. 3 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 3 x USB 3.2 Gen 1 ports
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Vélemények

    Erről a termékről még nem érkezett vélemény... Legyél Te az első!
    Írj véleményt!

Leírás és Paraméterek

  • CPU
    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 series processors:
      Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
    1. Supporting PCIe 3.0 x2 mode
    3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
    1. Supporting PCIe 3.0 x1 mode
  • Storage Interface
    1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. Supporting SATA and PCIe 3.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    Chipset:
    1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2. 3 x USB 3.2 Gen 1 ports on the back panel
    Chipset:
    1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 1 x CPU cooler LED strip/RGB LED strip header
    9. 2 x M.2 Socket 3 connectors
    10. 4 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    17. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 3 x USB 3.2 Gen 1 ports
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Audio 7.1 HD
    Chipset gyártó AMD
    D-Sub Nincs
    Display Port Nincs
    DVI Van
    Foglalat típusa AM4
    Form Factor ATX
    Grafikus foglalat 2 x PCI-Ex16x
    Gyártó GIGABYTE
    HDMI Van
    Kivitel dobozos
    M.2 foglalat Van
    Max memória 128
    Memória foglalatok száma 4
    Memória órajel 3200
    Memória típus DDR4
    Párhuzamos port Nincs
    PCI-E foglalatok száma 3
    PS/2 Port 1
    Quad Channel Nincs
    Raid Igen
    SATA III 4
    Soros port Nincs
    Thunderbolt Nincs
    USB 2.0 6
    USB 3.1 7
    VGA integrált Nincs
    Wireless Nincs

Hasonló termékek

GIGABYTE Alaplap AM5 A620M S2H AMD A620, mATX

GIGABYTE Alaplap AM5 A620M S2H AMD A620, mATX

Gyártó cikkszám:A620M S2H
8 db Raktáron
42.690 Ft
db Kosárba!
Részletek
MSI Alaplap AM4 B550M PRO-VDH WIFI AMD B550M, mATX

MSI Alaplap AM4 B550M PRO-VDH WIFI AMD B550M, mATX

Gyártó cikkszám:B550M PRO-VDH WIFI
91 db Raktáron
42.590 Ft
db Kosárba!
Részletek
ASUS Alaplap AM5 PRO A620M-DASH-CSM AMD A620, mATX

ASUS Alaplap AM5 PRO A620M-DASH-CSM AMD A620, mATX

Gyártó cikkszám:PRO A620M-DASH-CSM
10 db Raktáron
42.890 Ft
db Kosárba!
Részletek
ASUS Alaplap AM5 TUF GAMING A620AM-PLUS WIFI AMD A620, mATX

ASUS Alaplap AM5 TUF GAMING A620AM-PLUS WIFI AMD A620, mATX

Gyártó cikkszám:TUF GAMING A620AM-PLUS WIFI
19 db Raktáron
41.890 Ft
db Kosárba!
Részletek
GIGABYTE Alaplap AM4 B550M K AMD B550, mATX

GIGABYTE Alaplap AM4 B550M K AMD B550, mATX

Gyártó cikkszám:B550M K
100 db Raktáron
41.790 Ft
db Kosárba!
Részletek
MSI Alaplap AM5 PRO A620AM-B EVO AMD A620, mATX

MSI Alaplap AM5 PRO A620AM-B EVO AMD A620, mATX

Gyártó cikkszám:PRO A620AM-B EVO
47 db Raktáron
43.790 Ft
db Kosárba!
Részletek
ASUS Alaplap S1851 PRIME B860M-K INTEL B860, mATX

ASUS Alaplap S1851 PRIME B860M-K INTEL B860, mATX

Gyártó cikkszám:PRIME B860M-K
91 db Raktáron
44.290 Ft
db Kosárba!
Részletek
GIGABYTE Alaplap S1851 H810M GAMING WIFI6 INTEL H810, mATX

GIGABYTE Alaplap S1851 H810M GAMING WIFI6 INTEL H810, mATX

Gyártó cikkszám:H810M GAMING WIFI6
2 db Raktáron
44.390 Ft
db Kosárba!
Részletek
