Leírás

DJI Video Transmitter

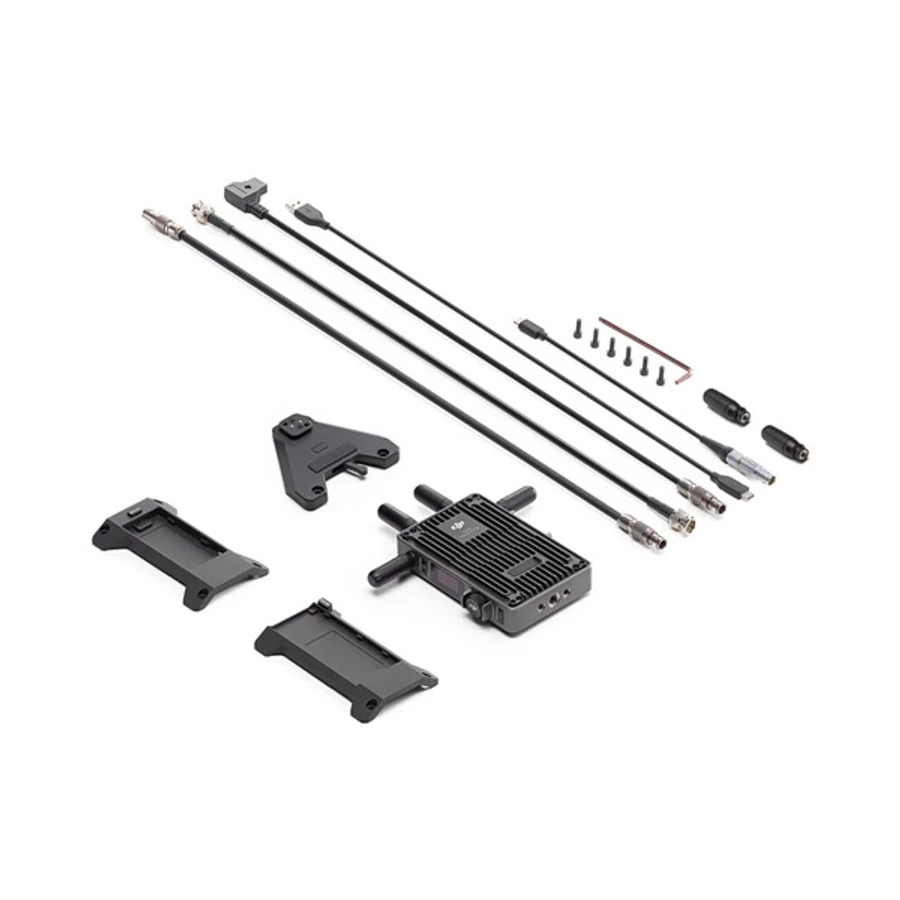

In the Box

  • Video Transmitter × 1
  • WB37 Battery Adapter (TX) × 1
  • NP-F Battery Adapter (TX) × 1
  • Ronin Video Transmission Antenna × 2
  • USB-C Cable × 1
  • SDI Cable × 1
  • DC Power Cable × 1
  • DC to P-TAP Power Cable × 1
  • DJI Transmission USB-C Power Cable × 1
  • RS Gimbal Mounting Plate × 1
  • Installation Toolkit × 1
    .


Specs

Specifications

  • Weight:

    Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
    High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)
  • Dimensions:

    Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
    High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
  • Operating Frequency:

    Non DFS Frequency Band:
    2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz

    DFS Frequency Band:
    5.250-5.350 GHz
    5.470-5.600 GHz
    5.650-5.725 GHz"
  • Transmitter Power (EIRP):

    2.4000-2.4835 GHz:
    <33 dBm (FCC)
    <20 dBm (SRRC/CE/MIC)

    5.150-5.250 GHz:
    <23 dBm (FCC/SRRC/MIC)

    5.250-5.350 GHz:
    <30 dBm (FCC)
    <23 dBm (SRRC/MIC)

    5.470-5.600 GHz, 5.650-5.725 GHz:
    <30 dBm (FCC)
    <23 dBm (CE/MIC)

    5.725-5.850 GHz:
    <33 dBm (FCC/SRRC)
    <14 dBm (CE)
  • Max Bandwidth: 40 MHz
  • Max Bitrate: 40 Mbps
  • Power Consumption: 11 W
  • Power Supply Voltage: 6 to 18 V
  • Output Voltage: Power Output Port: 6 to 18 V
  • Operating Time:

    Video Transmitter: 3 hours 40 minutes [1]
    High-Bright Remote Monitor: 2 hours [1]
  • Input Video Format:

    3G SDI: YCbCr 4:2:2 10-bit
    HDMI RGB 4:4:4
    1080p: 24/25/30/50/60fps
    1080i: 50/60fps
    720p: 50/60fps
  • Output Video Format:

    3G SDI: YCbCr 4:2:2 10-bit
    1080p: 24/25/30/50/60fps
    1080i: 50/60fps
    720p: 50/60fps
  • Input Audio Format: SDI embedded, HDMI embedded
  • Output Audio Format: PCM
  • Video Transmission System: O3 Pro
  • Video Transmission Latency:

    68 ms [2]
    100 ms [3]
  • Video Coding Format: H.264
  • Max Transmission Distance:

    6 km (FCC) [4]
    4 km (CE/SRRC/MIC) [4]
  • Operating Temperature: -10° to 45° C (14° to 113° F)
  • Mirror Control Mode Supported Camera Models: ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
    .


Other

Notes

1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
2. Measured when shooting 1080p/60fps video.
3. Measured when shooting 1080p/24fps video.
4. In open environments free of obstructions or interference.
