DJI RS 3 Pro

Ugrás a termék információkhoz
DJI RS 3 Pro DJI RS 3 Pro DJI RS 3 Pro DJI RS 3 Pro DJI RS 3 Pro
DJI RS 3 Pro
DJI RS 3 Pro
DJI RS 3 Pro
DJI RS 3 Pro
DJI RS 3 Pro

Paraméterek

Gyártó DJI
  • Elérhetőség:
    Rendelhető
  • Gyártó: Dji
  • Gyártó cikkszám: CP.RN.00000219.01
  • ChipVilág Cikkszám: 334638
  • Átlagos értékelés:
  • Ugrás az összehasonlító modulhoz
340.790 Ft (268.339 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

DJI RS 3 Pro

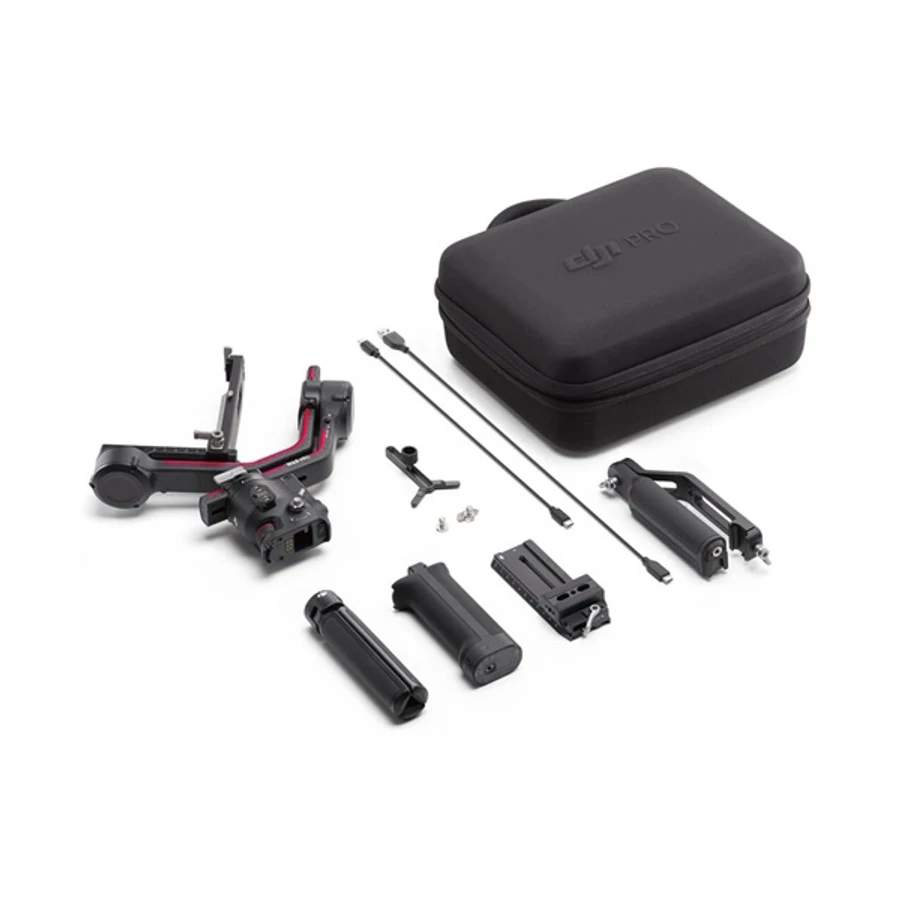

In the Box

  • Carrying Case × 1
  • Gimbal × 1
  • BG30 Grip × 1
  • USB-C Charging Cable (40 cm) × 1
  • Lens-Fastening Support (Extended) × 1
  • Extended Grip/Tripod (Metal) × 1
  • Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
  • Briefcase Handle × 1
  • Multi-Camera Control Cable (USB-C, 30 cm) × 1
  • Screw Kit × 1
    .


Specs

Peripheral

  • Accessory Port:

    RSA/NATO Ports
    1/4"-20 Mounting Hole
    Cold Shoe
    Video Transmission/LiDAR Range Finder Port (USB-C)
    RSS Camera Control Port (USB-C)
    Focus Motor Port (USB-C)
  • Battery:

    Model: BG30-1950 mAh-15.4V
    Type: LiPo 4S
    Capacity: 1950 mAh
    Energy: 30 Wh
    Max. Runtime: 12 hours [1]
    Charging Time: Approx. 1.5 hours (using 24W charger; it is recommended to use QC 2.0 or PD protocol chargers)
    Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
  • Connections:

    Bluetooth 5.0
    Charging Port (USB-C)
  • Ronin App Requirements:

    iOS 11.0 or above
    Android 7.0 or above
  • Languages Supported by the Touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
    .


Working Performance

  • Tested Payload: 4.5 kg (10 lbs)
  • Maximum Controlled Rotation Speed:

    Pan: 360°/s
    Tilt: 360°/s
    Roll: 360°/s
  • Mechanical Range:

    Pan axis: 360° continuous rotation
    Roll axis: -95° to +240°
    Tilt axis: -112° to +214°
    .


Mechanical & Electrical Characteristics

  • Operating Frequency: 2.400-2.484 GHz
  • Bluetooth Transmitter Power: <8 dBm
  • Operating Temperature: -20° to 45° C (-4° to 113° F)
  • Weight:

    Gimbal: Approx. 1,143 g (2.51 lbs)
    Grip: Approx. 265 g (0.58 lbs)
    Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
    Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
  • Gimbal Dimensions:

    Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
    Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
    .


DJI Ronin Image Transmitter

  • Connections:

    Power/Communication Port (USB-C)
    HDMI Port (Mini HDMI)
    RSS Camera Control Port (USB-C)
  • Expansion Port: Cold Shoe
  • Operating Frequency:

    2.400-2.484 GHz
    5.725-5.850 GHz
  • Weight: 126 g (0.27 lbs)
  • Dimensions: Length: 82×63×24 mm (L×W×H)
  • Transmitter Power (EIRP):

    2.400-2.484 GHz:
    <25 dBm (FCC)
    <20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    <25 dBm (FCC/SRRC)
    <14 dBm (CE)
  • Battery:

    Capacity: 2970 mAh
    Compatible Charger: 5 V/2 A
    Charging Time: Approx. 2.5 hours
    Operating Time: Approx. 3.5 hours
  • Transmission Range:

    200 m (SRRC/FCC) [2]
    100 m (CE) [2]
  • Latency: 60 ms
  • Operating Current/Voltage: 900 mA/3.7 V
  • Operating Temperature: 0° to 45° C (32° to 113° F)
    .


DJI LiDAR Range Finder (RS)

  • Accessory Port:

    Cold Shoe
    1/4"-20 Mounting Hole
    USB-C Port
    USB-C Power/CVBS/CAN Data Port
  • Image Sensor:

    Resolution: 448×298 on the RS touchscreen
    FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
    Frame Rate: 30fps
    Focal Length: 30mm Equivalent
  • ToF Sensor:

    Resolution: 240×180
    Sensing Range: 0.5 to 14 m [3]
    FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
    Frequency: 25 Hz
    Focal Length: 30mm equivalent
    Distance Error: 1%
  • Machine Learning:

    Frequency: 30 Hz
    Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow
    Smart Object Identification: Human face, head, and body
  • Electrical Properties:

    Power Consumption: 6.8 W
    Input: 7 to 16 V
  • Operating Temperature: -20° to 45° C (-4° to 113° F)
  • Mechanical Properties:

    Dimensions: 66×57×24 mm (L×W×H)
    Weight: Approx. 130 g (0.28 lbs)
    Mounting Plate Height: 30 mm
  • Lenses that Do Not Need Calibration:

    DZOFILM Vespid Cyber 35 mm
    DZOFILM Vespid Cyber 50 mm
    DZOFILM Vespid Cyber 75 mm
    .


Notes

1. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
2. In open environments free of obstructions or interference.
3. In environments with a brightness level of 80,000 lux or below.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
