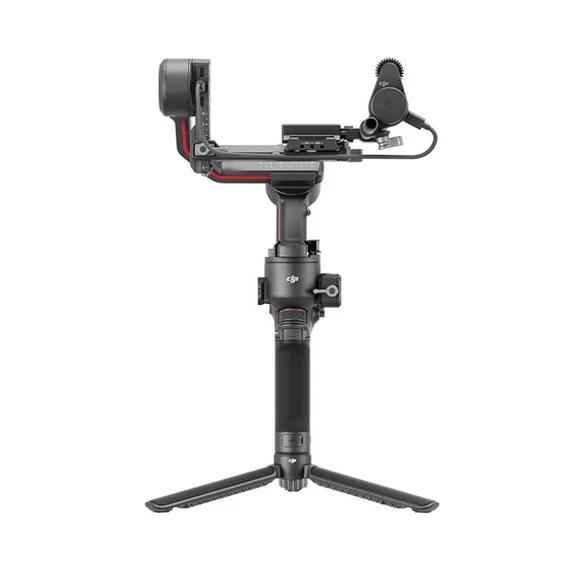

DJI RS 3 Combo

Ugrás a termék információkhoz
DJI RS 3 Combo DJI RS 3 Combo DJI RS 3 Combo DJI RS 3 Combo DJI RS 3 Combo
DJI RS 3 Combo
DJI RS 3 Combo
DJI RS 3 Combo
DJI RS 3 Combo
DJI RS 3 Combo

Paraméterek

Gyártó DJI
  • Elérhetőség:
    Rendelhető
  • Gyártó: Dji
  • Gyártó cikkszám: CP.RN.00000217.01
  • ChipVilág Cikkszám: 334641
  • Átlagos értékelés:
  • Ugrás az összehasonlító modulhoz
284.490 Ft (224.008 Ft + ÁFA)
Menny.: db
Értesítés
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van

Leírás

DJI RS 3 Combo

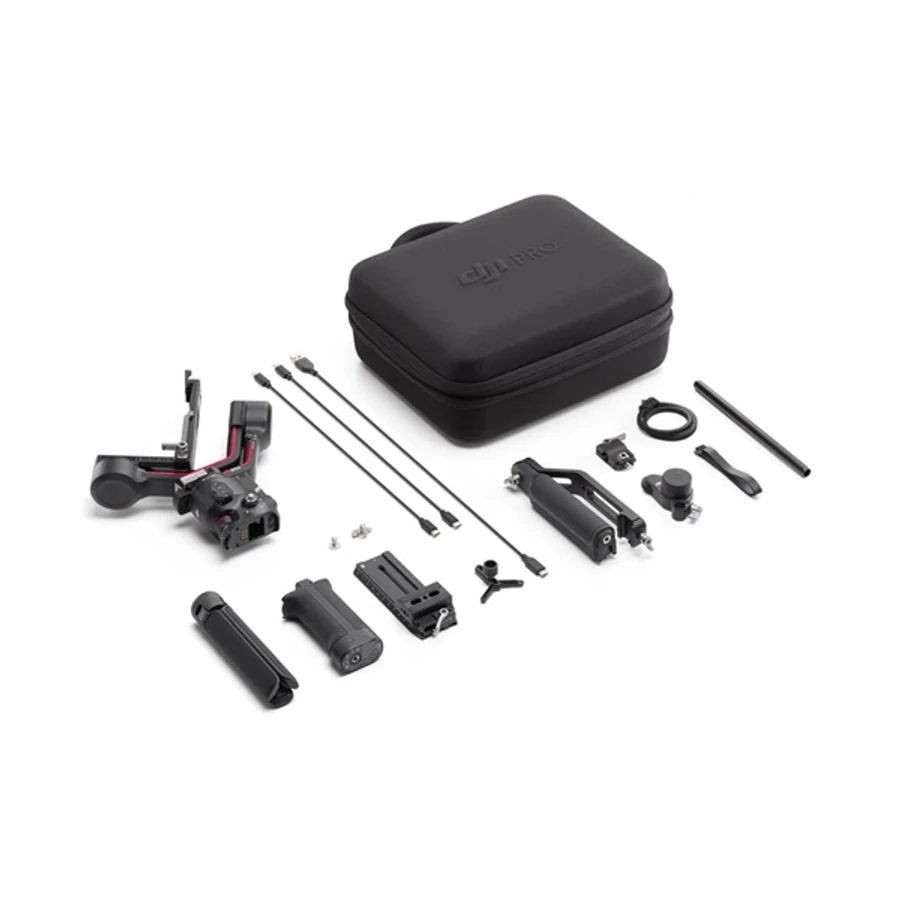

In the Box

  • Gimbal × 1
  • Carrying Case × 1
  • BG21 Grip × 1
  • USB-C Charging Cable (40 cm) × 1
  • Briefcase Handle × 1
  • Lens-Fastening Support × 1
  • Extended Grip/Tripod (Plastic) × 1
  • Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
  • Focus Motor (2022) × 1
  • Focus Motor Rod Mount Kit × 1
  • Focus Gear Strip × 1
  • Multi-Camera Control Cable (USB-C, 30 cm) × 2
  • Lens-Fastening Strap × 1
  • Screw Kit × 1
    .


Specs

Peripheral

  • Accessory Port:

    NATO Ports
    1/4"-20 Mounting Hole
    Cold Shoe
    Video Transmission/Focus Motor Port (USB-C)
    RSS Camera Control Port (USB-C)
    Focus Motor Port (USB-C)
  • Battery:

    Model: BHX711-3000-7.2V
    Type: 2S
    Capacity: 3000 mAh
    Energy: 21 Wh
    Max. Runtime: 12 hours [1]
    Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
    Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
  • Connections:

    Bluetooth 5.0
    Charging Port (USB-C)
  • Ronin App Requirements:

    iOS 11.0 or above
    Android 7.0 or above
  • Languages Supported by the Touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
    .


Working Performance

  • Tested Payload: 3 kg (6.6 lbs)
  • Maximum Controlled Rotation Speed:

    Pan: 360°/s
    Tilt: 360°/s
    Roll: 360°/s
  • Mechanical Range:

    Pan axis: 360° continuous rotation
    Roll axis: -95° to +240°
    Tilt axis: -112° to +214°
    .


Mechanical & Electrical Properties

  • Operating Frequency: 2.400-2.484 GHz
  • Bluetooth Transmitter Power: <8 dBm
  • Operating Temperature: -20° to 45° C (-4° to 113° F)
  • Weight:

    Gimbal: Approx. 990 g (2.18 lbs)
    Grip: Approx. 200 g (0.44 lbs)
    Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
    Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
  • Dimensions:

    Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
    Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
    .


DJI Ronin Image Transmitter

  • Connections:

    Power/Communication Port (USB-C)
    HDMI Port (Mini HDMI)
    RSS Camera Control Port (USB-C)
  • Expansion Port: Cold Shoe
  • Operating Frequency:

    2.400-2.484 GHz
    5.725-5.850 GHz
  • Weight: 126 g (0.27 lbs)
  • Dimensions: 82×63×24 mm (L×W×H)
  • Transmitter Power (EIRP):

    2.400-2.484 GHz:
    <25 dBm (FCC)
    <20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    <25 dBm (FCC/SRRC)
    <14 dBm (CE)
  • Battery:

    Capacity: 2970 mAh
    Compatible Charger: 5V/2A
    Charging Time: Approx. 2.5 hours
    Max Battery Life: Approx. 3.5 hours
  • Transmission Range:

    200 m (SRRC/FCC) [2]
    100 m (CE) [2]
  • Latency: 60 ms
  • Operating Current/Voltage: 900 mA, 3.7V
  • Operating Temperature: 0° to 45° C (32° to 113° F)
    .


Notes

1. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
2. In open environments free of obstructions or interference.


Vélemények

Erről a termékről még nem érkezett vélemény... Legyél Te az első!
Írj véleményt!
