Leírás

DJI RS 3

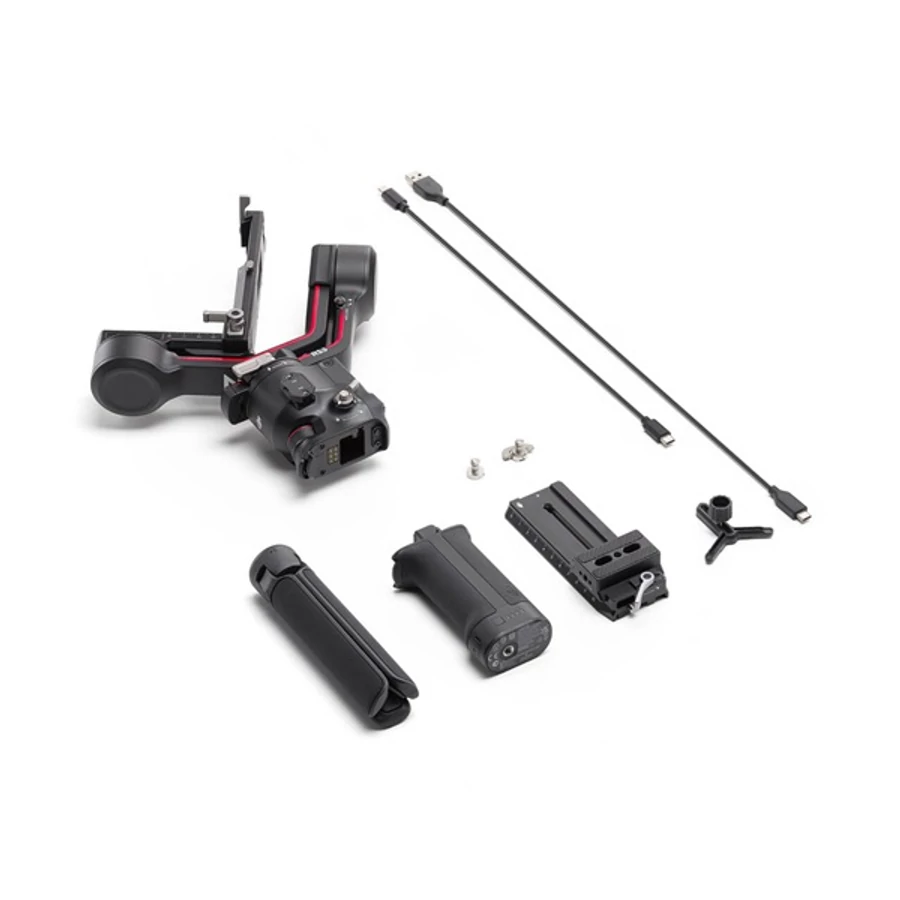

In the Box

  • Gimbal × 1
  • BG21 Grip × 1
  • Lens-Fastening Support × 1
  • Extended Grip/Tripod (Plastic) × 1
  • Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
  • Multi-Camera Control Cable (USB-C, 30 cm) × 1
  • Screw Kit × 1
  • USB-C Charging Cable (40 cm) × 1
    .


Specs

Peripheral

  • Accessory Port:

    NATO Ports
    1/4"-20 Mounting Hole
    Cold Shoe
    Video Transmission/Focus Motor Port (USB-C)
    RSS Camera Control Port (USB-C)
    Focus Motor Port (USB-C)
  • Battery:

    Model: BHX711-3000-7.2V
    Type: 2S
    Capacity: 3000 mAh
    Energy: 21 Wh
    Max. Runtime: 12 hours [1]
    Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
    Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
  • Connections:

    Bluetooth 5.0
    Charging Port (USB-C)
  • Ronin App Requirements:

    iOS 11.0 or above
    Android 7.0 or above
  • Languages Supported by the Touchscreen: English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
    .


Working Performance

  • Tested Payload: 3 kg (6.6 lbs)
  • Maximum Controlled Rotation Speed:

    Pan: 360°/s
    Tilt: 360°/s
    Roll: 360°/s
  • Mechanical Range:

    Pan axis: 360° continuous rotation
    Roll axis: -95° to +240°
    Tilt axis: -112° to +214°
    .


Mechanical & Electrical Properties

  • Operating Frequency: 2.400-2.484 GHz
  • Bluetooth Transmitter Power: <8 dBm
  • Operating Temperature: -20° to 45° C (-4° to 113° F)
  • Weight:

    Gimbal: Approx. 990 g (2.18 lbs)
    Grip: Approx. 200 g (0.44 lbs)
    Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
    Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
  • Dimensions:

    Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
    Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
    .


DJI Ronin Image Transmitter

  • Connections:

    Power/Communication Port (USB-C)
    HDMI Port (Mini HDMI)
    RSS Camera Control Port (USB-C)
  • Expansion Port: Cold Shoe
  • Operating Frequency:

    2.400-2.484 GHz
    5.725-5.850 GHz
  • Weight: 126 g (0.27 lbs)
  • Dimensions: 82×63×24 mm (L×W×H)
  • Transmitter Power (EIRP):

    2.400-2.484 GHz:
    <25 dBm (FCC)
    <20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    <25 dBm (FCC/SRRC)
    <14 dBm (CE)
  • Battery:

    Capacity: 2970 mAh
    Compatible Charger: 5V/2A
    Charging Time: Approx. 2.5 hours
    Max Battery Life: Approx. 3.5 hours
  • Transmission Range:

    200 m (SRRC/FCC) [2]
    100 m (CE) [2]
  • Latency: 60 ms
  • Operating Current/Voltage: 900 mA, 3.7V
  • Operating Temperature: 0° to 45° C (32° to 113° F)
    .


Notes

1. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
2. In open environments free of obstructions or interference.
