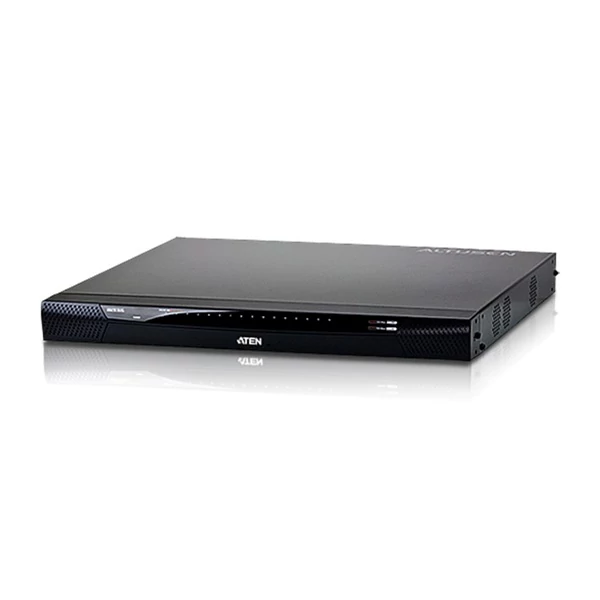

ATEN KN4116v KVM switch IP
Paraméterek
| Tulajdonság | Érték |
|---|---|
| Felbontás | 1600 x 1200 (UGA) 4:3 |
| Gyártó | ATEN |
-
Elérhetőség:
Rendelhető
- Gyártó: Aten
- Gyártó cikkszám: KN4116V
- ChipVilág Cikkszám: 214772
- Ugrás az összehasonlító modulhoz
Gyors szállítás
Válogatott raktárkészlet
Segítünk, ha kérdésed van
Leírás
| Computer Connections | |
| Direct | 16 |
| Maximum | 256 (via Cascade) |
| Console Connections | |
| Local | 1 |
| Remote | 4 |
| Port Selection | Pushbutton, GUI, Hotkey |
| Connectors | |
| Console Ports | 2 x USB Type A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue) |
| KVM Ports | 16 x RJ-45 Female (Black) |
| Power | 2 x 3-prong AC socket |
| LAN Ports | 2 x RJ-45 Female (Black) |
| PON | 1 x RJ-45 Female (Black) |
| Modem | 1 x RJ-45 Female (Black) |
| USB Port | 3 x USB Type A Female (White) |
| Audio | 2 x Audio Jack Female |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 2 x Rocker |
| Port Selection | 2 x Pushbutton |
| LEDs | |
| Online | 16 (Green) |
| Selected | 16 (Red) |
| Power | 1 (Blue) |
| Link 10 / 100 / 1000 Mbps | 2 (Red / Red + Green / Green) |
| Emulation | |
| Keyboard / Mouse | PS/2 / USB (PC, Mac, Sun) / Serial |
| Video | 1600x1200 @ 60Hz |
| Scan Interval | 1-255 Seconds |
| Maximum Input Power Rating | 100-240VAC ; 50-60Hz; 1.0A |
| Power Consumption | |
| Single Power | 115V / 34.7W ; 230V / 35.5W |
| Dual Power | 115V / 41W ; 230V / 41.5W |
| Environmental | |
| Operating Temperature | 0 - 50˚C |
| Storage Temperature | -20 - 60˚C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 6.04 kg ( 13.3 lb ) |
| Dimensions (L x W x H) | 43.84 x 41.21 x 4.40 cm (17.26 x 16.22 x 1.73 in.) |
Vélemények
Erről a termékről még nem érkezett vélemény... Legyél Te az első!
Írj véleményt!
Termékfülek
Leírás és Paraméterek
| Computer Connections | |
| Direct | 16 |
| Maximum | 256 (via Cascade) |
| Console Connections | |
| Local | 1 |
| Remote | 4 |
| Port Selection | Pushbutton, GUI, Hotkey |
| Connectors | |
| Console Ports | 2 x USB Type A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue) |
| KVM Ports | 16 x RJ-45 Female (Black) |
| Power | 2 x 3-prong AC socket |
| LAN Ports | 2 x RJ-45 Female (Black) |
| PON | 1 x RJ-45 Female (Black) |
| Modem | 1 x RJ-45 Female (Black) |
| USB Port | 3 x USB Type A Female (White) |
| Audio | 2 x Audio Jack Female |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| Power | 2 x Rocker |
| Port Selection | 2 x Pushbutton |
| LEDs | |
| Online | 16 (Green) |
| Selected | 16 (Red) |
| Power | 1 (Blue) |
| Link 10 / 100 / 1000 Mbps | 2 (Red / Red + Green / Green) |
| Emulation | |
| Keyboard / Mouse | PS/2 / USB (PC, Mac, Sun) / Serial |
| Video | 1600x1200 @ 60Hz |
| Scan Interval | 1-255 Seconds |
| Maximum Input Power Rating | 100-240VAC ; 50-60Hz; 1.0A |
| Power Consumption | |
| Single Power | 115V / 34.7W ; 230V / 35.5W |
| Dual Power | 115V / 41W ; 230V / 41.5W |
| Environmental | |
| Operating Temperature | 0 - 50˚C |
| Storage Temperature | -20 - 60˚C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 6.04 kg ( 13.3 lb ) |
| Dimensions (L x W x H) | 43.84 x 41.21 x 4.40 cm (17.26 x 16.22 x 1.73 in.) |
| Tulajdonság | Érték |
|---|---|
| Felbontás | 1600 x 1200 (UGA) 4:3 |
| Gyártó | ATEN |
