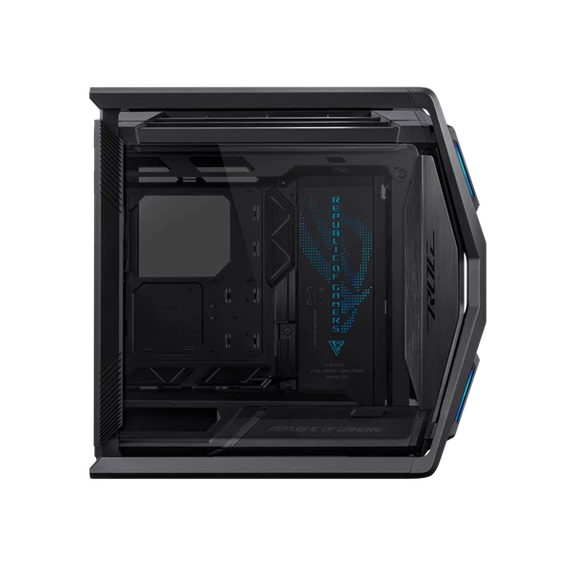

ASUS Ház ROG Hyperion GR701, Tápegység nélkül, Fekete, Üvegfalú

Motherboard Support

EATX (12"x10.9")

ATX

Micro-ATX

Mini-ITX

Drive Bays

5 x 2.5" Bay

2 x 2.5"/3.5" Combo Bay

Expansion Slots

9

3 (additional vertical)

Front I/O Port

1 x headphone / Microphone

4 x USB 3.2Gen1

1 x USB 3.2 Gen2 Type C

LED Control Button

Reset Button

1 x USB 4.0 Type C or 1 x USB 3.2 Gen 2x2 Type C

this spec might vary by region

Tempered Glass

Left Side

Right Side

Radiator Support (Front)

120 mm

140 mm

240 mm

280 mm

360 mm

420 mm

Radiator Support (Top)

120 mm

140 mm

240 mm

280 mm

360 mm

420 mm

Radiator Support (Rear)

120 mm

140 mm

Cooling Support (Front)

3 x 120 mm

3 x 140 mm

Cooling Support (Top)

3 x 120 mm

3 x 140 mm

Cooling Support (Rear)

1 x 120 mm

1 x 140 mm

Pre-installed Fans (Front)

3 x 140 mm

PWM

Pre-installed Fans (Rear)

1 x 140 mm

Maximum CPU Cooler Height

190 mm

Maximum GPU Length

460 mm

Maximum PSU Length

240 mm

Removable Dust Filters

Front

Top

Bottom

Maximum Cable Management Space

34 mm

Dimensions

268 * 639 * 659 mm

Weight

20.8 Kg
21.3 Kg (GR701 BTF Edition)

BTF motherboard compatible

ROG Hyperion GR701 BTF Edition ONLY
